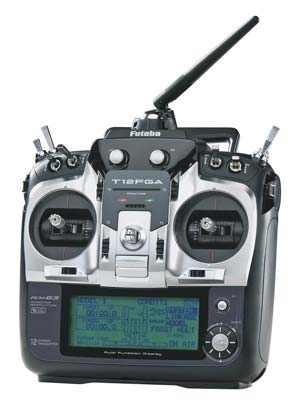

Futaba 12FGA 12-Channel (M1) PCM/ 40MHz/ R5114DPS/ 4xS9252  [12FGA_C1]

This is actually the airplane variation that will default to airplane settings whenever driven up and has now a ratcheted throttle stick.

The Futaba 12FGA stocks many features with all the current 14MZ specially Real-Time effect with 2048PCM, totally Synthesized Receiver that runs in either Mode A (standard Mode) or Mode B (amazing Mode), Servo Grouping, adjustable dual prices and Quad-Bearing Gimbals.

CHARACTERISTICS:

• PCM G3 2048 resolution is "backwards compatible" with 1024 PCM, and FM/PPM
• 10 free (user programmable) mixes
• 24 preset model sorts, 8 heli swash kinds and 16 model types for fixed wing aircraft
• 6 forms of no tail wing (winglet) in each airplane and glider
• Supports eight trip conditions (seven as well as the standard)
• FLASH-ROM memory for thirty models
• 1882 model memory available with optional 1GB facts available individually, Six factory-set adjustable twin speed (VDR) curves may be assigned to virtually any function in almost every trip condition
• configuration
• Variable double costs (VDR) and Expo could be combined in order that they are immediately triggered whenever a function is activated, no system blending required
• Dual Antenna Diversity (DAD)
• "Full Functionality" trainer system
• 255 x 96 LCD with adjustable comparison
• 7.2V 1700mAh NiMH transmitter battery
• R5114DPS Receiver;
• Functions in either Mode A (standard Mode) or if flying a model that produces many RF interference or if traveling in a location in which disturbance may possibly occur Mode B (brand-new Mode) might selected
• Through state-of-the-art Ball Grid Array (BGA) layered Computer board technology, this 14-channel synthesized receiver will be the globe's tiniest. All pilots will appreciate just how effortless its
• WFSS (cordless Frequency Setting System) makes changing frequencies at busy airfields. It may be done from transmitter without changing crystals.Servo Grouping;
• Multiple servos handling just one function are put up through transmitter then linked to in a different way adjustable receiver stations (also non-consecutively) without requiring another servo synchronizer for blending. Each servo's
• EPA are adjusted individually from transmitter-no split servo synchronizer requires for mixing
• Quad-Bearing Gimbals for smoothest motion and effect, stick stress and detent are adjustable
• Front installed slider switches for easier access
• Seven color LED indicator

INCLUDES:

• 12FGA Synthesized Transmitter (not available independently) 40MHz Module
• 7.2V 1700mAh NiMH Transmitter Battery
• Battery Charger
• NiCd 1500mAh 4.8V Receiver Battery
• Four S9252 Servo
• R5114DPS Receiver
• High Quality Change Harness
• Woven Orange Neck Strap
• Instructions

SPECS:

Transmitter:

• Os: 2-stick, 12 networks, PCM-G3 synthesizer system
• Modulation: PCM-G3, PCM 1024, or FM/PPM switchable

Receiver:

• Receiving Frequency: United States just 72MHz bands
• Intermediate Frequency: 10.7MHz & 450kHz
• Size: 2" x 1.5" x .65" (52mm x 37.5mm x 16.5mm)
• Power Requirement: 4.8V NiCd battery
• Present Drain: 75mA
• Body weight: 1.16oz (33g)

Servo:

• Speed: 0.14 sec/60?X @ 4.8V
• Torque: 92 oz-in (6.6 kg-cm) @ 4.8V
• Power: 4.8V (Futaba cannot suggest utilizing 6V)
• Size: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
• Body fat: 1.8oz (50g)
