Futaba 2DR 2-Channel AM 27MHz/ R122JE/ S3003  [2DR_c2]

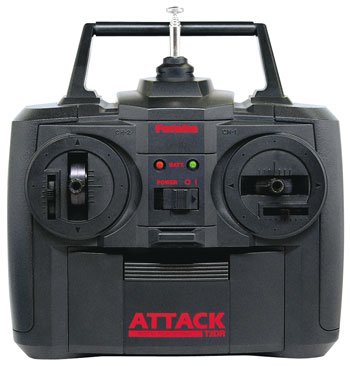

Here is the Futaba 2DR 2 Stick 2 27MHz or 75MHz AM radio system with two S3003 Standard Servos.

Well suited for ships, cars and trucks 27MHz or 75MHz and gliders on 27MHz (channels A1-A6 just).

QUALITIES:

• Simple to use fundamental two-stick radio system
• Two channel servo reversing
• Steering and throttle trims
• LED battery status indicator
• No TX recharging jack

INCLUDES:

• One Futaba 2DR have always been Broadcast Transmitter
• Transmitter and Receiver Crystals
• Two S3003 Standard Servos with two X-Shaped Hands, FUTM0031
• One R122JE have always been Receiver

NEEDS: 8 AA batteries

SPECS:

• S3003 Servo
• Speed: .23 sec/60° @ 4.8V or .19 sec/60° @ 6V
• Torque: 44 oz-in @ 4.8V or 56.8 oz-in @ 6V(3.2 kg-cm @ 4.8V or 4.1 kg-cm @ 6V)
• Size: 1.6"L x .8"W x 1.4"H (41x20x36mm) w/o manufacturing shaft
• Body fat: 1.3oz (37.2g)
• Connector: "J" sort with approx. 5" lead

REMARKS:

• This technique cannot include any servo mounting gear. If mounting equipment is essential, purchase FUTM3551.
• The two small aluminum pieces added to this radio are stick extensions that are pressed in the end concerning the stick.
