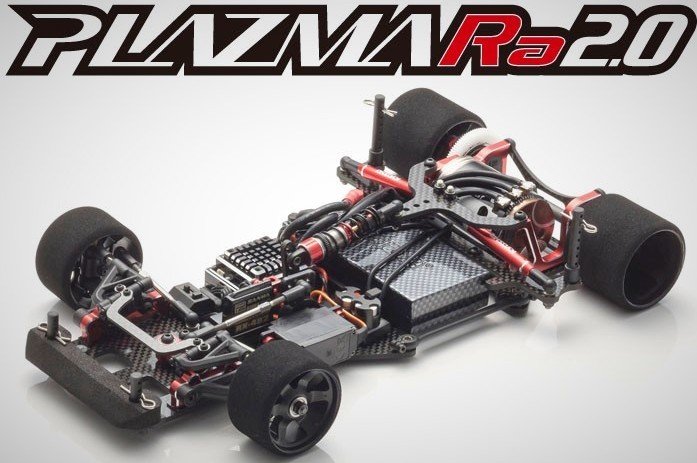

Kyosho 30423 - 1/12 PLAZMA Ra 2.0  [KY-30423]

1/12 Scale Electrical Rc 2WD Racing Vehicle PLAZMA Ra Series: PLAZMA Ra 2.0

Filled with rushing tech developed through the greatest level!Drive the planet’s revolutionary manufacturing race device!

A new race scene has developed in the four years since the launch the PLASMA Ra in December 2011. It is now time for a brand new machine that embodies the sum every one of the knowledge from constant racing competition. With all the current freedom to adjust to different conditions, like free movement of the center shock position to change from high-grip areas to slippery circuits, therefore the choice of crank or direct steering systems, this groundbreaking machine includes the absolute most high rate design features. The product and design of each and every carbon and red anodized aluminum component is meticulously developed to have optimal energy and fat balance. The 2-stage finishing procedure associated with the red anodized aluminum parts produces a feeling of pride in buying a machine with such an immaculate high-quality finish.

• Adaptable to any or all or any area sorts, complete performance potential is achievable on various competition circuits.
• Red anodized aluminum parts with 2-stage finishing procedure gleam with high-quality engineering.
• Brand brand new king-pin strut system on front suspension system system. Slim and easy structure allows screw be taken off outside for easier maintenance. Alignment of camber, caster and tread are modified.
• Rear suspension system with center pivot and rear side hyperlink retained because of its superior control of roll and pitching faculties.
• Back center shock with diaphragm keeps constant oil amount and combines with friction pipeline that completely controls roll option to create superior working protection. Features accuracy device cut POM (white synthetic) shock piston and titanium coated spindle.
• Features worldwide standard size right back axle. Thrust bearing included creates smooth diff function and metric size (4mm) diff nut provides improved versatility.
• Height is defined just by replacing the axle mount.
• Grooves inside framework prevent fiberglass tape accustomed secure the battery from touching the path area. O-ring battery pack owner additionally makes battery power changes effortless during training runs.
• Center place linked to the engine delivers optimal left/right weight security of straight back component. Design enables motor become moved 2.5mm towards the center therefore the hefty fat of engine and ball diff product might be regularly optimize weight stability.
• Crank steering system delivers exemplary left/right stability. Optional steering dish permits free Ackerman setting. Crank product is supported by ball bearings at the top and base and may be positioned in 3 different front-rear settings.
• 1/12 electric race automobile includes the planet’s innovative design technology.
• Interchangeable front suspension system (except knuckle) understands maintenance effectiveness.
• Suitable for dependable JR and Futaba mini servos for 1/12 course. *Sanwa can be employed with optional component.
• Verified performance of coil springs put up on both front part and right back sides. A variety of springs can be found.
• Includes largest worldwide standard size tires (largest in its course).
• Uses metric (mm) size screws and peanuts. *Only screws for backside wheel and clamp hub (L) are ins size.
• Ball diff has an abundance of ability with big diameter diff band. Standard spur gear for DD cars can be utilized.

Kit Articles:

• Unassembled chassis kit
• Decals
• Guide

Required for Process :

• 2ch, 1 mini servo R/C system for vehicles
• Brushless engine (540 course)
• ESC (80A minimum proposed) for brushless motor
• 1 cell (3.7V) Li-Po battery power for 1/12 or 2 cellular (7.4V) Li-Po battery power for charger for framework
• Pinion gear (64 pitch 13-38T)
• Tires
• 1/12 Racing vehicle body
• Tools
• Paint for body
• Batteries for R/C system

Other Features:

• Big roll surprise features a revised roll piston and knows larger tread area and increased effectiveness of oil through device cut lateral grooves.
• Tall durability 7075-grade engine mount changed from two lower fixing points to top & lower repairing points including being thinned for lighter fat. Also, gap produced in the middle of your screws concerning the motor mount and reduced pad decreases stress under contact from hits.
• Modification of springtime tension are produced with no removal of elements through a hole to the lower pad which allows a 2.0mm hex wrench use of a 2mm hexagonal groove in part spring owner.
• Stabilizer control is delivered through a carbon meal connecting the remaining & right suspension obstructs.
• Urethane bumper included as standard. Body mount place relocated 10mm towards ultimately causing stop body overhang.
• Roll point between main framework and paid down pad relocated 2mm rearward to deliver sharper switching performance.
• Aluminum antenna holder secures antenna and center shock stay securely. 6 center shock functions are chosen whenever utilized in combination with optional components.
• Five ride height adjusters included: 0mm; 1.5mm; 2.5mm; 2.75mm, and 3.0mm. Most often used settings from 2.5mm to 3.0mm are modified at 0.25mm increments. Nylon item delivers superior impact opposition.
• Big diameter tires the Ra 2.0 is the biggest in its class. Produced from soft nylon.
• Excess ended up being symmetrically removed from the framework leading to 20g lighter fat for pure racing performance.
• Front upper supply redesigned to a universal interchangeable form to be utilized on both front & back, left & right sides, along with less play. Lower suspension system supply redesigned for lighter fat and effective flex.
• Complete ball bearing specifications (total 11). Crank additionally features two ball bearings.
• 92T spur gear included. Proven thrust bearing utilizing 16 balls additionally included as standard.
• Engine mount fixing changed to top & paid off securement with 0.25mm lower mount when compared with past model. Made from high power 7075-grade aluminum.
• Chassis height may be modified with carbon spacer. Loosen the screw on bulkhead and push from behind to go ahead for easily framework height modification. Carbon spacers of varied thicknesses can be obtained as choices.

Chassis Technical Data:

• Length: 281mm
• Width: (F/R) 164mm/166-170mm
• Height: 47mm
• Wheelbase: 200mm
• Tire(F/R): F41mm minimum / F41mm minimum
• Body weight: 730g approx. (JMRCA regulation)
• Engine: 540 class brushless motor (sold separately)
