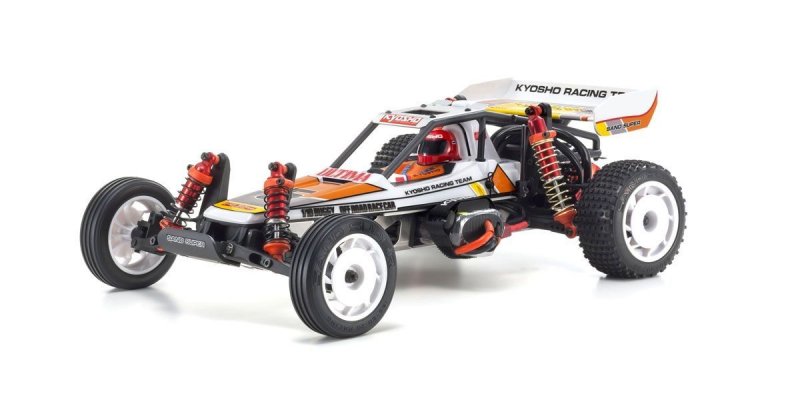

Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy [KY30625]

Price:

AUD$440.10

Brand:

Kyosho

Model:

KY30625

GTIN:

4548565369539

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

alt="Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy" title="Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy"

Description

The effect the ULTIMA’s dominantTQ & 1-2-3 finish to the 2WD program at second Electric Off path World Championship in England in 1987 wound up being sensed throughout the RC car scene. Now Kyosho’s famous ULTIMA turns straight back the clock having its return even though the 8th model inside Kyosho Vintage Series! Now Kyosho’s famous ULTIMA turns right back the clock featuring its return simply because 8th model within the Kyosho Vintage Series!
First circulated in 1986, the 2WD ULTIMA channeled rushing technology through OPTIMA into an electric race buggy whirlwind that swept around the world. Good Vintage Series, the 2019 ULTIMA variation is promoting in design and build to meet up with performance standards for modern R/C racing circuits and power sources. As an example, the monocoque framework consists of aircraft grade A60601T6 aluminum alloy and multi-pin block pattern straight back tires deliver optimized performance on contemporary off road songs. Complete ball bearing specs minimize drive loss and complement high-durability sintered alloy metal gears, slipper clutch and motor guard to shield the drive system while crash-resistant resin rear wing are included.
Relive the nostalgia with this ULTIMA’s glory utilizing the 2019 variation with progressed into a modern-day race device that enables you to drive like some kind of champ.

ULTIMA is faithfully recreated, with component improvements for compatibility with contemporary power sources.

Polycarbonate human body with motorist cockpit recreates the style and environment for the original ULTIMA.

Full ball bearing specs (14)

Equipped with battery guard that prevents battery pack fast circuit during a crash.

A monocoque frame created from tempered A6061T6 pressed clear anodized aluminum alloy useful for aircraft make combines with a glass strengthened resin upper deck to produce light-weight and durability for difficult driving. The battery pack stay works and battery pack sorts and utilizes a hook & cycle fastener (includes battery power band printed with KYOSHO logo) for effortless battery mounting.

Front and rear double wishbone suspension adopts the proven OPTIMA design. Similar front-rear geometry assures managing protection anyhow speed ranges. Impact-resistant nylon reduced supply combines with steel pole upper arm to enable camber modification. Upgrade with optional titanium adjust pole 38mm (No.92413) for both front side and rear.

The same big capability 12mm diameter oil shocks simply because OPTIMA deliver superior operating stability over uneven areas. Long type nylon resin molded surprise tower allows tuning for contemporary RC battle circuits. Upgrade with optional silver shocks OTW128 (F) and OTW129 (R).

Optimized geometry with aluminum steering link and steel bushings with the servo saver including aluminum pipeline and metal springtime design found in current race buggies, provides stable and exact steering feel. Upgrade with optional ball bearings and titanium adjust rod 50mm (No.92416).

Toe angle settings in the rear hub organizations are set to 1.0°, 2.0°, 2.5°by changing resin bushings. Detail by detail settings might be adjusted good specific rushing conditions.

Gear module had been changed to 48-pitch through the original model’s 8-pitch to supply paid down drive loss. Plus the newly created 46 nylon 57T 1st gear, all the gears are upgraded towards the sintered steel gears from OPTIMA. Upgrade with optional diff OTW101 to boost driving feel.

Gearbox has slipper clutch to shield the gearbox and drive system from unexpected load modifications such as for instance jump landings. An easy task to modify and adaptable to different race conditions. Upgrade with optional slipper pad (SCW021 HD) for compatibility with higher energy and hard driving.

Included motor guard (had been just available as optional update concerning the original ULTIMA) is manufactured from A6061T6 item and provides increased durability. Resin wing mount provides selection of 2 height settings and angle might set between 3 ° - 6 ° with shims. Previously produced from polycarbonate, the resin wing delivers enhanced crash opposition. Along with white, there are 5 color alternatives to incorporate additional design to your device.

Rear tires work optimized multi-pin pattern to produce stable grip on many areas as well as been recreated inside the image of the initial difficult block tires. Upgrade with optional OTT244S (smooth) and OTT244H (hard) tires. Tall rigidity one-piece tires exchange the 50mm three-piece tires with this initial Ultima. Along side white, you can find 3 color choices to choose from.

TECHNICAL INFORMATION

Length: 370mm
Width: 244mm
Height: 106mm
Wheelbase: 260-263mm
Tread (F/R): 206mm / 208mm
Tire(F/R): 75f x 20mm / 82f x 36mm
Gear Ratio: 8.64:1
Weight: approx. 1,500g
engine: 540 course size

KIT CONTENT

Pre-assembled kit
Polycarbonate clear body
Decals
Chassis parts
Cross wrench
Shock wrench
Grease

REQUIREMENT TO PERFORM

2ch 1 servo R/C system for cars
540 course motor
ESC ideal for motor used
Battery for framework appropriate for ESC used
Battery charger
Paint for polycarbonate body
Batteries for transmitter
