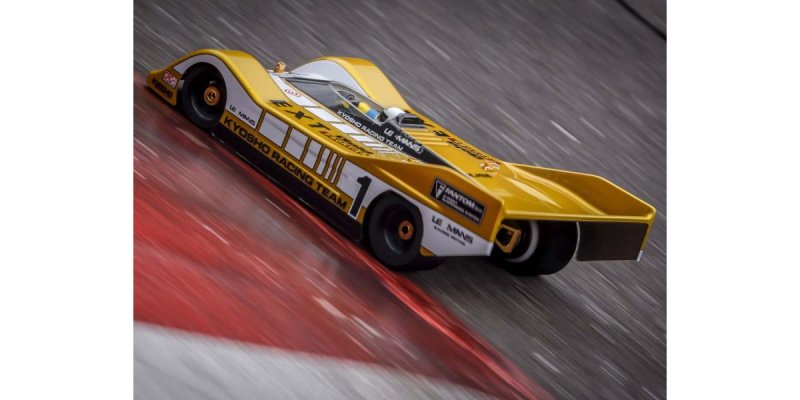

Kyosho 30644 - 1:12 Scale Radio Controlled Electric Powered 4WD Racing Car FANTOM EP 4WD Ext Gold 60th Anniversary limited  [KY-30644]

Of many famous models Kyosho has manufactured in its glittering 60-year history, the 1/12 scale Phantom EP electric race automobile is a standout. First released in 1983, the Phantom EP-4WD accompanied by the Phantom EP-4WD Ext in 1985 obtained outstanding results at Japanese Championships. For fans of this spectacular age, the Phantom EP-4WD Ext ended up being selected because the 12th model the Kyosho Vintage Series. To commemorate Kyosho’s 60th anniversary, this limited-edition of the Phantom EP-4WD Ext features silver anodized aluminum components and unique black colored front and back tires. Efficiency happens to be further improved with a rear ball diff (unavailable in 1985) that works in perfect combination with a thicker (risen to 6mm diameter) lightweight carbon shaft that delivers smooth cornering characteristics on different surfaces from asphalt to carpeting. Besides, the trunk damper was upgraded towards the EFW014 adjustable rear surprise (previously optional) to widen the range of developing choices and enhance responsiveness for optimized running performance. Since its launch in 2022, the Vintage Series Phantom EP-4WD Ext has captured the imagination of new fans also individuals who need to relive the glory times. While you at this time possess the Phantom EP-4WD Ext, this limited-edition 60th anniversary commemorative model takes the Phantom experience to a whole new level.

●As the 12th model in the Kyosho Vintage Series, the Phantom EP-4WD Ext is upgraded into a distinctive version 60th anniversary model.
●All aluminum parts are anodized in silver the 60th anniversary model.
●While following design of initial model circulated in 1985, each component is enhanced to complement contemporary R/C systems and energy sources.
●Ladder sequence 4WD on-road racer shows exemplary security even on low-grip areas.
●Black FRP double-deck chassis exhibits an optimal balance of freedom and power. Built with front reinforcement dish.
●3-point suspension system system sets the traditional for high dependability in 1/12 EP racers.
●Dial adjustable oil surprise allows effortless modification of spring stress.
●Ball differential can be simply modified by tightening the nut.
●Equipped with lightweight and high-strength φ6mm carbon back shaft as standard.
●Wheel peanuts are gold anodized. Unique lightweight bolt is employed the differential housing.
●Compatible with 1:12 Scale radio control electric 4WD rushing automobile FANTOM EP 4WD Ext Gold 60th Anniversary limited the present Phantom EP-4WD Ext.
●Unassembled framework kit includes pre-glued front part and right back tires and unpainted body.

The 60th anniversary silver type of the Ext framework combines 3-point suspension system because of the ladder string 4WD system that revolutionized the R/C race globe in 1985.

Ebony limited-edition front side and straight back wheels are unique towards 60th anniversary model. The kit is sold with tires pre-glued and diameter modified, to be able to drive since it is, without the need for modification make use of a tire setter.

In a reaction to specific requirements, this model features the initial ball differential included into the FANTOM EP series. Provides stable cornering faculties in conjunction with an ultra-lightweight carbon shaft strengthened to 6mm in diameter. A newly created unique wheel bolt is employed to fix the right wheel.

Lightweight and high rigidity carbon rear shaft is roofed as standard. Diameter is increased from 5mm to 6mm, significantly enhancing crash opposition.

The 6mm back left wheel hub additionally features the silver finish unique to your 60th anniversary model. The double screw clamp keeps it safe and prevents loosening while driving.

Previously simply offered as an option, the Rear Adjust Shock Conversion (No.EFW014) is roofed as standard, permitting precision adjustment and a wider selection of setting options.

Kingpin coil suspension system with a specially shaped springtime linked to the the top of front knuckle supply achieves smooth cornering by inducing human body roll with just minimal swing.

Back the main key framework is extensively cut to improve freedom and produce the suspension system system effect. In conjunction with the oil-filled surprise, this simple system provides exemplary area tracing performance faculties.

Effective aerodynamics for the initial CRC-II body design knows excellent cornering performance. An optional back wing used through the Phantom EP-4WD and BW Spider could possibly be installed for increased stability.

TECHNICAL INFORMATION

• Length 340mm
• Width 172mm
• Height 83mm
• Chassis type Chain drive4WD
• Wheelbase 199-200mm(Adjustable)
• Tread F:135mm/R:133mm
• TireF:48x23mm/R:?53x35mm
• Gear ratio 3.38:1
• Weight approx.900g(with GAB4202)
• Motor 540class(both sold individually)
• utilized propo 2~3ch 2servo
• Maximum price ?55km/h (with Le Mans480G)
• Driving Time approx.23minutes(with Le Mans480G)
