Kyosho (#31275) - Kyosho 1/8 Inferno MP-7.5 Sports RTR (ReadySet)

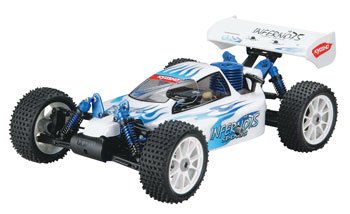

Here is the Kyosho Inferno MP7.5 Sports 1/8 Readyset nitro driven ready-to-run off road buggy with radio.
which based on the championship winning MP7.5 Chassis and comes pre-assembled using the Kyosho GX21 engine with pull-start.
Compatible with MP7.5 and Kanai Edition II hop ups.
FEATURES:
Chassis: 3mm aluminum main framework and aluminum upper deck
Drive: Four wheel drive
Drive Type: Shaft driven
Radio: 2 channel AM pistol hold Kyosho Perfex with high torque steering servo, trims and servo reverse (produced by Futaba like the Futaba 2PH)
Engine: Kyosho GX21 with pull start and slip valve carburetor
Exhaust: Tuned pipeline with header
Fuel Tank: 125cc (4.2oz) flip top cap
Clutch: 2-Shoe
Transmission: Single-speed
Ball Bearing: complete set included, 18 total
Shocks: 4 oil-filled, blue aluminum with coil-over spring
Main Gear: plastic 46T
Gearbox: Sealed, both front and rear
Differential: Planetary geared, w/ring and pinion
Brakes: Twin dual disk
Tires: 3.2" buggy action pin, moderate ingredient rubber
tires: 1-Piece, 10-spoke, buggy type
Body: surely detail by detail painted down road buggy body
Bumpers: Front only
Suspension: Front and rear separate dual wishbone
Camber Tie Rods: Adjustable
Steering Tie Rods: Adjustable
Steering: Bell-Crank
Servo Saver: Included
Warranty Period: ninety days
INCLUDES:
Inferno MP7.5 Sports rolling chassis with aluminum shocks, GX21 motor, radiance plug, painted lexan human body, tires, 48 enamel spur gear, 10-Spoke Wheels, Wing, 13 enamel Clutch Bell, instructions, decal set
NEEDS:
Broadcast Batteries: Twelve AA size
Glow Starter: 1.2 volt
Misc. Things: fuel container, building and track equipment
Fuel: 2-cycle radiance gasoline with 10%-15percent nitromethane, 18per cent lubricant-
Most regarding the fuels we carry meet or exceed the lubricant content
required for optimum performance and maximum engine life. In the
past, the conventional lubricant content employed in gas ended up being 18percent. But
with fresh higher level technologies, fuels like Red Alert and O'Donnell
for instance, have actually an improved quality of lubricants although the
percentages of lubricant content are paid down. These high-tech
lubricants offer exceptional cooling and security.
SPECS:
Vehicle-
Length: 19.5" (495mm)
Width: 12" (305mm)
Height: 7.4" (188mm)
Weight: 7.1lbs (3220g)
Wheelbase: 12.9" (328mm)
Front Track: 10.2" (258mm)
backside Track: 10.2" (258mm)
Ground approval: 1.1" (28mm)
Gear Ratio: 11.7 :1
Tires- front side: 1.7" x 4.6" (42x116mm)
back: 1.7" x 4.6" (42x116mm)
Body-
Length: 15-1/2" (393mm)
Width: 8-1/2" (215mm)
Height: 4-1/4" (107mm)
Steering servo:
Speed: .20 sec/60 deg. @ 4.8V and .16 sec/60 deg. @ 6.0V
Torque: 72 oz/in @ 4.8V and 90 oz/in @ 6V
5.2 kg/cm @ 4.8V and 6.5 kg/cm @ 6V
OPINIONS: If using the GS-21R you will need (Flywheel).
The stock GX-21R flywheel wont work with the GS-21R.
For Substitution Ball Bearings use:
Qty. Size
(18) 8 x 16mm
