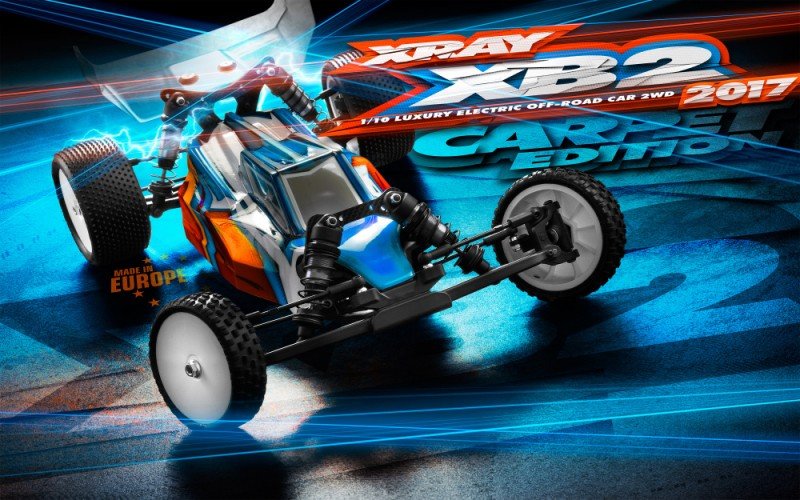

XRAY 320002 XB2 2017 Specs - 2WD 1/10 Electric Off-road Car - Carpet Edition  [XR-320002]

Dimensions

• Class: 1/10 electric 2WD down road car
• Width: Adjustable 245-250mm
• Length: 274mm (394mm with wing)
• Wheelbase: Adjustable 282-285mm
• Weight:
• Ready-to-run fat: 1520g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0mm
• Front upper deck: tricky composite

Suspension

• Suspension: Adjustable suspension system via built-in Suspension System I.S.S.
• Rear suspension system: Lower supply with adjustable upper camber link
• Front suspension system: Lower supply with adjustable top camber url along with adjustable caster 0°, 2.5° and 5°
• Rear upright: Composite 0° toe-in with double arm mounting and 7 roll center jobs
• Shocks: Membrane free shock absorbers with Delrin pistons
• Shock towers: Front & rear machined 4.0mm & 3.5 mm laminated carbon graphite (Carpet Edition) or composite (dust Edition) with many shock mounting

Drivetrain

• Type: 2WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Differential: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.65
• Gear Box gear: 36T
• Differential pulley: 53T
• Spur gear: 84T (75T, 78T, 81T & 87T option)
• engine pinion: maybe not included

Geometry

• Camber: Adjustable front + rear
• Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
• Toe-in: Adjustable front + rear
• Downstops: Adjustable front + right back
• Front kick-up: Adjustable 26°~31°
• Rear anti-squat: Adjustable 0°~4°
• Anti-roll bars: 1.0mm, 1.1mm, 1.2mm rear (choice only)
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned twin steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB2 body
• Tires: Not included
• Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• guidelines: Full-color manual with 3D pictures (40 pages)
• Set-up guide: not included. HUDY 2-color off road set-up guide (40 pages) may be installed in „Download area“ for that reason shows 1/8 down road models in photographs contained within it. But the methodology and set-up theory are the identical for most modern 1/10 off road vehicles.
• Packaging: Carton industry with vinyl bags with parts
• Additionally included: HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals

Things not included

•   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for a lot of peanuts and turnbuckles alongside tools
