XRAY 320006 XB2C 2019 Specs - 2WD 1/10 Electric Off-road Car - Carpet Edition  [XR-320006]

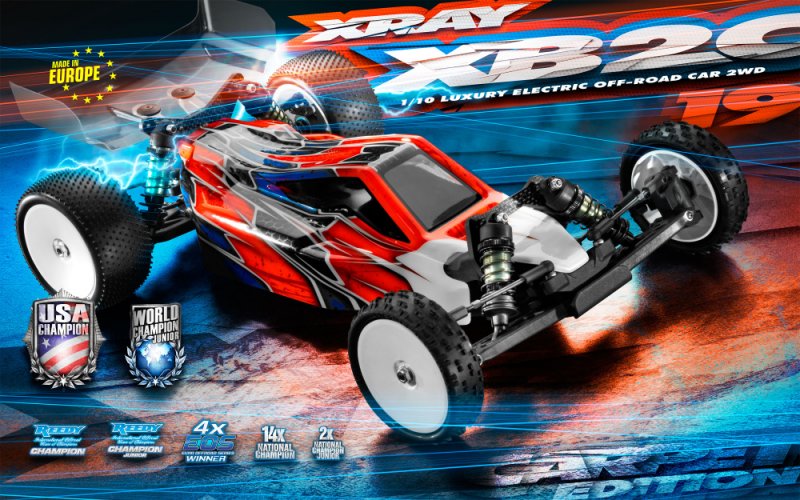

XRAY XB2C '19

1/10 LUXURY OFF-ROAD car 2WD

General

• Brand new, from ground up 2WD 1/10 electric race buggy
• Uni-Platform concept: Carpet Edition and Dirt Edition
• Full compatibility and interchangeable parts
• Designed for greatest performance anyway degrees of racing
• Engineered with focus on smallest details
• Manufactured with famous imaginative craftsmanship from premium European materials
• EFRA, ROAR, FEMCA spec compliant
• Super easy to build, put up, keep, and drive
• Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, produced solely by XRAY in European Countries worldwide's many advanced level RC manufacturing facility
• Setting the newest standard for premium quality, reliability and performance
• Premium XRAY solution & help

Uni-Platform Concept

• Uni-Platform concept two editions: Carpet Edition and Dirt Edition
• Single platform, two editions for different traction conditions
• Full compatibility and interchangeable elements

 Carpet Edition:  created for medium to very-high traction conditions

• Gear Differential
• Mid-Motor Gear Box
• Mid-Motor Plate
• Graphite Front & straight back Shock Towers
• Rear Roll Center Holder
• Motor Upper Brace
• Battery Strap
• Medium and tough Composite elements

• Dirt Edition:  designed for very-low, low, moderate, and medium-high traction conditions
  • Ball Differential
  • Mid Gear Box for 3 Gears
  • Mid & Rear engine Plate
  • Composite Front & Rear Shock Towers
  • Rear Roll Center Holder
  • Motor Upper Brace
  • Battery Strap
  • Gear cover
  • Medium Composite components

Chassis

• Optimal framework fat blood supply & stability, particular to Carpet Edition or Dirt Edition
• Carpet Edition Gear Box and engine dish particularly made to install the engine in middle spot with top shaft put lower
• Dirt Edition Gear Box and engine Plate specifically designed to set up the engine in either center place or right back position, with top shaft placed greater. Gear package might be fashioned with either a 3- or 4-gear setup, permitting modification associated with motor orientation from left to right part in either mid or back positions.
• Unique XRAY Multi-Flex technology for effortless chassis flex adjustment
• Swiss 7075 T6 hardcoated aluminum framework: lightweight, strong, rigid
• Electronics design enables going the batteries frontwards/rearwards, additionally utilizing standard or mid-size servos and either making use of seat pack or quick pack batteries
• Composite part guards are a simple piece of the XB2 Multi-Flex system
• Custom-designed front side reduced chassis brace, obtainable in moderate and difficult hardness for certain track conditions
• Front security bumper
• Custom-designed upper deck, available in medium and difficult hardness for certain track conditions
• Swiss 7075 T6 aluminum engine dish, specific to Carpet Edition (mid-motor) or Dirt Edition (mid- or rear-motor)
• Battery band with foam spacer, specific to Carpet Edition or Dirt Edition
• Lightweight, strong surprise towers with many shock mounting functions, specific to Carpet Edition (graphite) or Dirt Edition (composite)
• Pre-drilled framework holes for extra loads for optimum car balancing; centerline holes are pre-drilled for effortless balancing utilizing the HUDY Chassis Balancing Tool #107880

Drivetrain & Differentials:

• Conventional gear-driven 2WD off road car
• Unique gear package, specific to Carpet Edition or Dirt Edition
  • Carpet Edition Gear Box and motor Plate with lowered top shaft, forward-shifted engine for improved steering and handling on higher-traction surfaces
  • Dirt Edition Gear Box with raised top shaft, engine placement nearer to differential for improved back hold in lower-traction conditions
• Included back differential is certain to Carpet Edition (gear differential with adjustable oil viscosity, 53T gear & interior satellite gears) or Dirt Edition (externally-adjustable ball differential with high-quality carbide thrustbearing and carbide balls)
• 25T graphite composite idler gear is certain to Dirt Edition & 36T gear to Carpet Edition
• 20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
• Robust slip-adjustable clutch with 81T main spur gear molded from exclusive secret combination of composite material
• 3-pad slipper clutch with ultra-efficient SLS product to obtain more efficient & exact slip modification, and HUDY Spring Steel™ hardened outdrives for additional lifespan and reliability
• Constant velocity drives (CVD) are produced from unique HUDY Spring Steel for paid down weight and increased durability
• Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 not to mention black-coated have actually ultra-true hex clamping design which ensures solid mounting associated with the wheel
• Full set of 24 high-speed, blue-sealed ball-bearings can be used through the drivetrain to ensure maximum effectiveness, degreased and oiled with AeroShell® Fluid 12 for optimum smoothness and endurance

Suspension

• Integrated Suspension Settings (I.S.S.) for fast & easy suspension system geometry establishing using eccentric bushings inserted into Swiss 7075 T6 aluminum suspension system holders
• Specially-designed suspension system components made of very carefully formulated custom made composite mixtures to make certain appropriate flex and durability
• Race-perfected suspension system system geometry for superior performance and freedom in almost every competition conditions.
• Suspension elements: fingers, steering obstructs, caster blocks and uprights can be purchased in moderate and difficult hardness for many track conditions
• Lower composite supply mount with integrated 26° kick-up angle; optional aluminum and metal supply mounts available
• Lightweight, rigid caster obstructs may do various general caster angles using included caster bushings
• Tiny yet tough steering obstructs composed of composite steering obstructs + graphite Ackermann extensions
• Adjustable weight stability & wheelbase via included shims on exterior suspension pins
• Compact rear uprights with 0° toe and 6 various top roll center positions
• HUDY Spring metal product for turnbuckles (featuring a tougher core) can be utilized for front & rear upright linkages, and steering system.
• Optionally available back anti-roll club set to stabilize a corner for the automobile; easily adjusted via linkages; laser-engraved markings for effortless recognition, for sale in various sizes for fine-tuning

Steering

• Simple yet effective dual-arm steering system
• Fully bearing-equipped with 8 high-speed ball-bearings for really precise steering
• Easily-adjustable Ackermann by quickly changing the steering link mounting jobs regarding steering plate
• Bump guide modification for more aggression
• Ackermann adjustment via included shims or using different graphite expansion dishes on steering blocks

Shocks

• constant, dependable, membrane-free shocks with bleed-screw shock limit design feature up-stop & downstop modification via shims (under surprise collar, and under pistons, correspondingly)
• Swiss 7075 T6 aluminum surprise numbers, reduced nut & bleeder shock caps
• Super-precise molded Delrin™ pistons can be obtained with various holes & diameters for exact surprise modification; for customized modification, a few blank pistons (no holes) will also be included
• Shock rods are machined from a particular metal material, accuracy hand-ground for optimum smooth operation and additionally hardened for increased lifespan
• Premium surprise springs created especially to check the XB2 shocks; by hand determined, selected and matched into pairs to make sure equal length and damping faculties; laser etched for simple identification
• Full distinct linear -or- progressive shock springs available
• Premium silicone oils laboratory tested and calibrated to make sure optimum determination and quality

Body, Wings, Wheels:

• High-downforce, low-profile aerodynamic Lexan™ human anatomy made to totally fit the XB2, flat cockpit & body sides to direct airflow for improved component security, and rooftop flow channels
• Tough composite part guards work double-sided Velcro™ tape to seal the body completely towards framework and seal against dirt.
• Optional available ultra-lightweight human anatomy for very-high-traction songs conditions
• Stylish, effective Lexan backside wing made to work perfectly due to the XRAY XB2 human anatomy, supported on wing mounts by extra flat shims to raised assistance and expand the life of the wing. Recommended thicker 1.5mm (#323511) back wing for greater traction & stability
• Lexan front side wing yields front downforce, mounted totally on front surprise tower
• Specially designed 12mm hex hub tires for high-competition racing; featuring reinforcement ribs to get rid of deformation and molded from really versatile product to retain form despite having impacts

Assembly, Set-up & help:

• Premium 3D full-color directions & supplementary sheets
• To completely comprehend the set-up possibilities we recommend the popular HUDY Set-up Book which will be packed with over 40 pages of high-quality photos and easy-to-read RC car set-up explanations
• Exclusive Virtual on line Setup Sheet database with a huge number of set-up sheets for battle songs across the world
• Premium, unmatched XRAY on the web support

Adjustment Possibilities:

• Fully-adjustable front and rear suspension system system geometry: caster, camber, back toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex
• Adjustable rear differential action
• Adjustable slipper clutch
• Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear upper links)
• several upper & paid down shock mounting locations at front & rear
• Adjustable Ackermann and bumpsteer
• Optional adjustable backside anti-roll bar
• Chassis pre-drilled holes for fat stability modification
