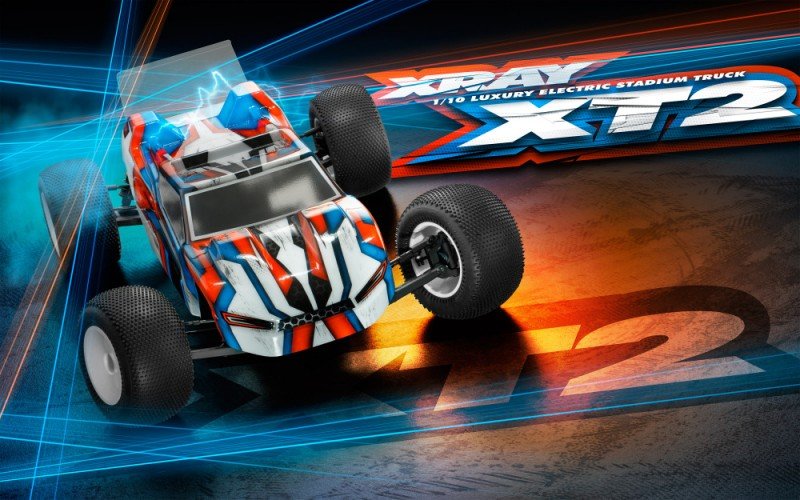

XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck  [XR-320200]

XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck
Price:
AUD$659.95
Brand:
XRAY
Model:
XR-320200
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Truggy - Electric Powered category
Write a review
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"

Dimensions

  • Class: 1/10 electric 2WD off road arena truck
  • Width: Adjustable 313-319 mm
  • Lenght: 319 mm (420 mm with wing)
  • Wheelbase: Adjustable 289-294 mm
  • Weight: 920 g
  • Ready-to-run fat: 1900 g


Chassis

  • Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
  • Front top deck: tough composite


Suspension

  • Suspension: Adjustable suspension system via included Suspension System I.S.S.
  • Rear suspension: Lower arm with adjustable upper camber link
  • Front suspension: Lower supply with adjustable upper camber url alongside adjustable caster 0°, 2.5° and 5°
  • Rear upright: Composite 0° toe-in with dual supply mounting and 7 roll center jobs
  • Shocks: Membrane free shock absorbers with Delrin pistons
  • Shock towers: Composite front and rear shock towers include many shock functions


Drivetrain

  • Type: 2WD
  • Primary: Pinion / spur
  • Drive shafts: HUDY Spring metal™ CVD drive shafts
  • Differential: Sealed gear differential, 6 gear, silicone-filled
  • Slipper clutch: Adjustable 3-Pad
  • Bearings: Rubber-sealed high-speed bearings


Gearing

  • Primary ratio: 1:2.65
  • Gear Box gear: 36T
  • Differential pulley: 53T
  • Spur gear: 84T (75T, 78T, 81T & 87T choice)
  • engine pinion: maybe not included


Geometry

  • Camber: Adjustable front + rear
  • Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
  • Toe-in: Adjustable front + rear
  • Downstops: Adjustable front + back
  • Front kick-up: Adjustable 26°~31°
  • Rear anti-squat: Adjustable 0°~4°
  • Anti-roll pubs: Front – 1.4mm (1.2mm, 1.6mm & 1.8mm option only)
  • Ackermann: Adjustable
  • Bump steer: Adjustable
  • Steering: Centrally-positioned double steering system


Body, Tires, Wheels & Misc

  • Body: XRAY XB2 body
  • Tires: perhaps not included
  • Wheels: not included - XRAY Aerodisk 12mm Wheel hex hub (option only)


Adjustment Possibilities

  • Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
  • directions: Full-color manual with 3D pictures (40 pages)
  • Set-up guide: maybe not included. HUDY 2-color off road set-up book (40 pages) could possibly be downloaded in acquire section also it shows 1/8 off road models in photographs included within it. But the methodology and set-up concept are a similar for many modern 1/10 off road vehicles.
  • Packaging: Carton package with plastic bags with parts
  • Additionally included: HUDY Graphite Grease, Silicone natural oils, Authentication Certificate, Parts list & Exploded view, Decals


Things perhaps not included

  •   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packs, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for several peanuts and turnbuckles as well as other tools
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
