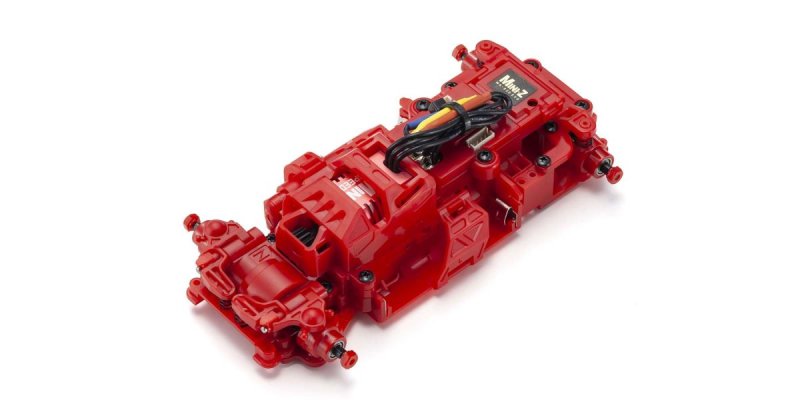

The MA-030EVO Red Limited equips with original red color parts through the entire framework! The MINI-Z ended up being initially beautifully made with a receiver, servo and speed controller, nevertheless regarding MR-030EVO the receiver had been built to be bought and set up as a different sort of unit to permit the model to be used along with other makes of transmitter like KYOSHO (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO PROPO (EX-2/EX-RR/EX-NEXT), Futaba (T10PX/T7PX/T7XC/T4PM/T4PM Plus), and Flysky (Noble NB4). In addition, the MA-030EVO is installed with an increased spec 5-stage gear kind servo. Additionally, a unique CPU for servo control improves the control rate of positioning feedback and also the updated control system provides top steering feel ever through improved responsiveness and linear response to driver control. The one-piece heatsink and aluminum situation regarding KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless engine keeps it cool for optimal performance. The I.C.S. manager allows precision environment alterations including a brushed engine compatibility function. Switch between drift and hold driving designs to experience the ultimate in AWD driving performance.
●MA-030 AWD framework will depend on MINI-Z FWD MA-03F framework.
●Compatible with L（94mm） and LL（98mm） wheelbases. Just LL（98mm） can be employed with back dual wishbone suspension system set.
●Compatible with MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set Red Limited ?Limited version? the various MR-03F framework models
＜Mountable body＞
AWD MA-030 chassis is based on the FWD MINI-Z MA-03F framework. Front midship design of engine creates superior lateral and vertical weight circulation to comprehend exceptional maneuvering.
Take away the upper address of the receiver along with the framework to setup the receiver devices appropriate for KYOSHO, KO, FUTABA and Flysky transmitters.
Featuring superior VCS front suspension system adopted from the past models. Settings may be modified with using any tools simply by changing coil springs.
Right back suspension system system gets the identical strut device as the MA-03F framework (standard environment at time of delivery). Not only is upkeep simple, settings might be changed with toe control rods and camber knuckles according to conditions.
Precision back increase wishbone suspension system set permits setting improvements through toe angle modification. Can be used instead of normal strut type suspension system centered on needs.
*Only LL size wheelbase can be utilized with straight back dual wishbone suspension set.
KYOSHO SPEED HOME brushless engine XSPEED 85 (8500KV) features a one-piece aluminum instance that understands efficient temperature dissipation.
TECHNICAL INFORMATION
Scale: 1/27.6 Length: 126.0mm Width: 65.0 - 76.0mm (adjustable by wheel offset) Height: 36.0mm Chassis Type: MA-030 Wheelbase: 94.0mm (just with strut right back suspension system system put up), 98.0mm (factory put together) body weight: 135g Brushless 8500KV Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1 Tire Diameter (F/R): sold separately Tire Width (F): offered separately Tire Width (R): sold separately Transmitter: maybe not included Top rate: approx. 17km/h Runtime: approx. 50min.Length: 126.0mm
KIT CONTENT
Factory-assembled framework laden with EVO main product installed Pinion Gears (15T, 17T, 19T, 21T) DWS conversion parts *Front tread change parts Pinion gear removal tool Spare wheel nuts Wheel wrench Center shaft for L wheelbase Wide right back suspension system fingers for DWS swing shafts (4 x long) Spur gears (27T, 29T, 31T)
REQUIREMENT TO OPERATE
8 x AAA batteries Auto Scale Collection (human body, tires and tires) Transmitter MINI-Z EVO receiver item appropriate for the transmitter utilized
