To bring its powerful performance to even more motorists, the MINI-Z AWD is obtainable in a Readyset. The MA-020 framework features VCS (variable camber suspension system) in front side that optimizes camber change with suspension system swing and a specially developed circuit board. The chassis design allows area for installing the optional gyro unit. The gyro could be modified by turning a little amount regarding the framework to reflect the total amount of steering modification in reaction to alterations in framework posture, allowing beginners right through to specialists to drive with regards to their full potential. Fully fitted out with accuracy ball bearings, the high drive effectiveness of MA-020 framework is complimented into the Readyset by the unique scale body and 2.4GHz Syncro KT-531P R/C system that needs no regularity band setting; all at a fantastic value expense. Just set the batteries to savor the thrill of drift driving utilising the included group of drift tires. The framework is compatible with the most of ASC MINI-Z bodies (additional components perhaps needed for somebody designs). The MINI-Z AWD guarantees a unique realm of dramatic race action for you yourself to experience and luxuriate in.
●MINI-Z AWD Readyset devoted to MA-020 framework.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitiveness modification function.
●Drift tires are set up as standard.
●Readyset calls for only batteries become willing to put it to use!
●Features 2.4GHz Syncro KT-531P transmitter that may need no setup of frequency bands.
●Factory finished human anatomy is sold with display model quality finish.
●Features VCS (variable camber suspension system) that adjusts camber according to suspension system swing.
●Coil springtime on front suspension system can be easily changed without tools.
●wide range of optional elements can be acquired become installed.
●Note) Optional ICS can't be utilized. Furthermore, this model is especially created for the KT-531P transmitter. It's not suitable for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its simply suitable for the initial gyro unit (offered separately).

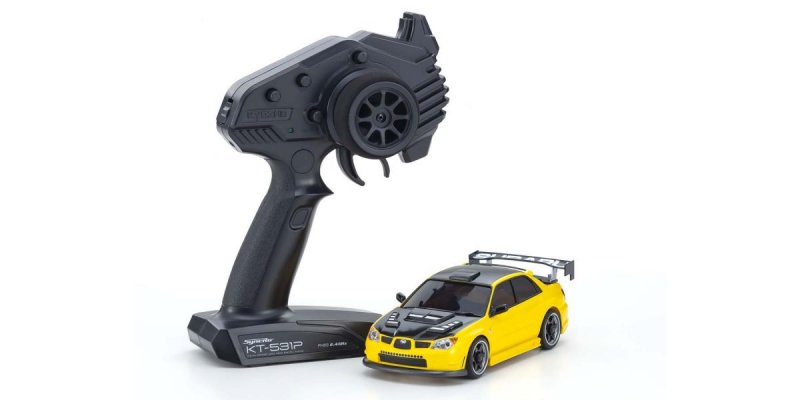

Late model requirements was in fact developed inside 2nd generation Subaru Impreza. Hawkeye headlights finished the solid face with this particular unit that formed the beds base for aero tuning featuring large straight back wing and differing ducts.
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim and dual price modification of steering angle and control the blinking speed of optional LEDs. Additionally, the transmitter has an exercise Mode function which limits rate connected with car for effortless learning (standard environment at the time of delivery is Training Mode).
Special AWD Sports framework is created in the MA-02 chassis and features the RA45 device.
Features VCS front suspension system that optimizes camber change in concert with suspension system stroke. Replacement of front suspension system system coil springs is easy with no tools needed.
Fashioned with strut-type back suspension.
Complete bearing requirements consist of 14 ball bearings.
Loaded with drift tires as standard.
Full of special mount room and gyro adjustment amount the optional gyro unit (sold separately).
TECHNICAL INFORMATION
- Length 155.0mm
- Width 68.0mm
- Height 51.0mm
- Chassis MA-020-N
- Wheelbase 90.0mm(M)
- Tread F : 58.5mm R : 58.5mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.0mm
- Rear Wheel Offset Narrow +1.0mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
/li>- R / C unit incorporated complete framework
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- free nut
- Wheel wrench
- Pinion reduction unit
REQUIREMENT TO RUN
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
