To create its effective performance to more drivers, the MINI-Z AWD has become easily obtainable in a Readyset. The MA-020 framework features VCS (variable camber suspension system) on front side that optimizes camber modification with suspension swing and a specially designed circuit board. The chassis design permits space for establishing the optional gyro unit(Sold separately:MZW446>herefor gyro assistance). The gyro might modified by turning a little amount concerning the framework to mirror the total amount of steering modification in a reaction to alterations in framework posture, allowing novices through to experts to operate a vehicle using their full potential. Completely fitted away with accuracy ball bearings, the high drive effectiveness the MA-020 framework is complimented in the Readyset by the initial scale human anatomy and 2.4GHz Syncro KT-531P R/C system that will require no regularity band environment; all at an excellent value cost. Just set the batteries to take pleasure from the excitement of drift driving with all the included pair of drift tires. The framework works with with many ASC MINI-Z systems (additional elements perhaps essential for somebody designs). The MINI-Z AWD promises a unique realm of dramatic race action to assist you experience and luxuriate in.
●MINI-Z AWD Readyset devoted to MA-020 chassis.
●Special circuit board updated with optimized steering control system.
●Chassis features gyro sensitiveness modification function.
●Drift tires are arranged as standard.
●Readyset demands just batteries become prepared to use it!
●Features 2.4GHz Syncro KT-531P transmitter that needs no setup of regularity bands.
●Factory completed human anatomy is sold with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber in accordance with suspension system system move.
●Coil spring on front suspension system system can be easily changed without tools.
●wide collection of optional elements can be acquired become installed.
●Note) Optional ICS cannot be used. Furthermore, this model is very created for the KT-531P transmitter. It is perhaps not suitable for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It's only appropriate for the unique gyro product (offered separately:MZW446).

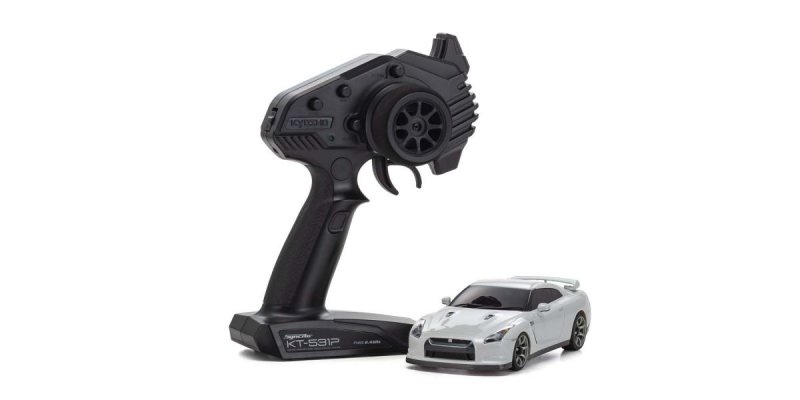

The GT-R’s unique style and driving performance has obtained Japan’s supercar its ‘Godzilla’ reputation around the world. The dominating existence is resulted in to complete amount, in its MINI-Z size.
Includes stylish design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual cost modification of steering angle and control function LEDs. Besides, the transmitter has a fitness Mode feature which limits rate associated with automobile for effortless learning(standard establishing during the time of distribution is Training Mode).
Unique AWD Sports framework is based on the MA-02 framework and features the RA45 item.
Features VCS front suspension system that optimizes camber change in concert with suspension system system swing. Replacement of front suspension system system coil springs is simple without any tools needed.
Designed with strut-type straight back suspension.
Complete bearing specs include 14 ball bearings.
Designed with drift tires as standard.
Designed with special mount area and gyro modification amount the optional gyro device (sold separately:MZW446).
TECHNICAL INFORMATION
- Length 164.0mm
- Width 72.0mm
- Height 48.0mm
- Wheelbase 94.0mm(L)
- Tread F : 58.5mm R : 59.0mm
- Chassis MA-020-N
- Front Wheel Offset Narrow +1.0mm
- Rear Wheel Offset open +-0.0mm
- R/C System Syncro KT-531P
KIT CONTENT
- R / C device incorporated complete framework
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- free nut
- Wheel wrench
- Pinion removal tool
REQUIREMENT TO OPERATE
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
