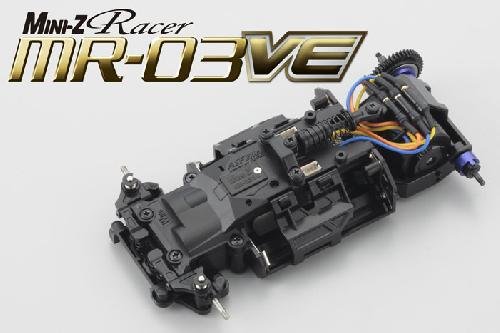

Kyosho 32760 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set  [KY32760]

Kyosho 32760 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set
Price:
AUD$457.34
Brand:
Kyosho
Model:
KY32760
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32760 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set" title="Kyosho 32760 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set"

Chassis pre-installed with a higher performance brushless motor!
Next generation MINI-Z introduces far more durability and energy!

The following development of the MINI-Z Racer now incorporates the most recent brushless motor technology into its performance. Never ever used before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless engine with its characteristic high durability, energy, RPM and an appartment torque feel. The MINI-Z provides full benefit of the brushless motor’s efficient low friction; non-contact properties that minimize usage and reduce electric sound to provide outstanding linear effect and smooth acceleration for a sensorless brushless motor that is authorized to be used inside MINI-Z Cup along with other formal races. A restriction applied to maximum RPM keeps the playing industry degree for all drivers. Additionally, a newly developed circuit board with ICS function links to some type of computer (adapter offered separately) for precision setting corrections. Simply download the ‘ICS VE Manager’ computer software from Kyosho internet site to control the brushless engine settings and eliminate the RPM restriction to extract the entire potential from your own device. The newly created upper target additionally enables simple mounting of this optional gyro ahead and framework has the MR-03 ball diff which was formerly optional. Now the MR-03’s powerful performance is turbo-charged with brushless engine power to mark a new stage inside growth of MINI-Z performance and technology.

*Can be operated with previous MINI-Z Racer ASF2.4 GHz 2-channel transmitter.

Features:

  • MR-03 Chassis Set installed with brushless motor
  • Ball Diff Set (No.MZW206) included as standard.
  • Appropriate for several current MINI-Z Racer body types.
  • Unique brushless motor circuit board features 3 LEDs to indicate appropriate function.
  • Redesigned top address permits simple putting in gyro.
  • appropriate optional elements the MR-03 chassis.
  • Features newly developed revolutionary ‘VCS’ front suspension that adjustments camber angle in collaboration with suspension stroke.
  • ASF2.4GHz R/C system eliminates need certainly to handle regularity bands. Only one transmitter can be utilized with numerous models. **Transmitter is sold separately.
  • Built with digital steering servo with built-in coreless motor.
  • Coil springs on front suspension system system is just changed by reducing the springtime stopper with just two screws.
  • Features high effectiveness silver plated motor terminals.
  • Pre-calibrated zero point steering setting.
  • Brushless motor is the identical size as present 130-class engines. Delivers outstanding durability and power.
  • Newly developed brushless engine circuit board could be added onto the MR-03 framework. Equipped with 3 LEDs to indicate proper operation and ICS function.
  • Upper cover redesigned to check completely new circuit board and it is appropriate for all existing human body types. Features room ahead for mounting optional gyro.
  • Good quality silver plated motor terminals and silicon cables included as standard to address the high power production.
  • Ball Diff Set (previously optional component No.MZW206) is roofed as standard. Functions in perfect combination with brushless engine energy.

brushless motor

  • Rather than the brush and commutator found in brushed machines until recently, brushless motors depend on the electric circuit to power the motor. To create energy, brushed engines required constant contact betwixt your brush and commutator, which produced opposition and caused use regarding contact areas to minimize the motor's durability.
    Brushless engines remove this problem and create greater energy manufacturing, torque and greater top quality performance through the exact same power input. As there is absolutely no contact area, durability is improved so that the motor keeps its higher rate of performance for considerably longer. These faculties enable R/C models to execute at greater amounts than ever before.

VCS (adjustable Camber suspension system system) takes performance to a whole new dimension!

  • Upper hands linked to king pins and knuckles with ball links let the camber angle to improve with suspension system swing, like on a genuine automobile. Tire experience of the external liner remains constant, also during framework roll and suspension move from area tracing. The newly developed electronic steering servo utilizes a coreless motor providing you with fast steering effect and razor-sharp maneuverability that feels as if its riding on rails. In addition, the surface of the supply and one-piece cantilever provide ideal cushioned movement the coil spring. Furthermore, the metal master pin and wheel shaft delivers smooth motion for exceptional running security. Precision geometry settings remove toe in and toe down modification during suspension move and create a neutral steering feel. The newest VCS (adjustable Camber Suspension) represents an important evolutionary help the track record of the MINI-Z.

Newly developed electronic steering servo features coreless motor and new gear decrease ratio

  • The effective position retention and movement of electronic servo is improved using the use of a coreless motor giving you instantaneous grab and stopping. Also, the newly developed steering gear product has three times the device ratio of earlier incarnations for greater power in keeping its place in order that it holds its line securely facing kickbacks from the road area and provides a whole lot more accurate motion and reaction.

Kit Articles

  • Factory assembled MR-03W framework arranged with Team ORION XSPEED VE brushless motor.
  • One-piece RA-27 receiver and brushless motor circuit board constructed with ICS connector
  • Modification parts for RM-type engine mount
  • Upper and lower dish and steering tie pole for (front) slim tread (included)
  • Front suspension system system spacers for adjustment
  • Pinion Gears (7T, 8T, 9T)
  • Wheel wrench
  • Pinion gear device
  • Pairing stick
  • free wheel peanuts

Needed for procedure

  • ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
  • AAA size alkaline batteries or Ni-MH x 4 for framework
  • AAA sized alkaline batteries x 4 for transmitter (KT-18), AA size alkaline batteries x 8 (EX-5UR)

Chassis Technical Suggestions

  • Length: 124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
  • Width: 65~76mm
  • Height: 34~35mm
  • Wheelbase: 86~106mm(86,90,94,98,102,106)
  • Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
  • Tire(F/R): 23.5~25×8.5mm / 25~27×8.5~11mm
  • Gear Ratio: 7.3,6.3,5.5,4.9:1
  • Weight: 135g approx.
  • Engine: Team ORION XSPEED VE
