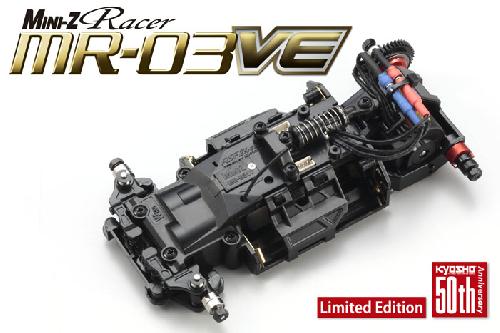

Kyosho 32761 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set (50th Limited Edition)  [KY32761]

The following development connected with MINI-Z Racer now incorporates the latest brushless motor technology into its performance. Never utilized before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless engine with its characteristic high durability, power, RPM and a set torque feel. The MINI-Z takes complete advantageous asset of the brushless motor’s efficient low friction; non-contact properties that minimize wear and reduce electric sound to provide outstanding linear effect and smooth acceleration for a sensorless brushless engine that is approved for use inside MINI-Z Cup and also other formal occasions. A restriction put on maximum RPM keeps the playing field degree for many motorists. In addition, a newly created circuit board with ICS function links to a PC (adapter sold separately) for accuracy environment modifications. Just download the ‘ICS VE Manager’ pc software from Kyosho website to manage the brushless motor settings and get rid of the RPM limitation to remove the whole potential from your own device. The newly designed top address in addition allows easy mounting associated with the optional gyro towards the top although the framework has the MR-03 ball diff that was previously optional. Now the MR-03’s powerful performance is turbo-charged with brushless engine capacity to mark a fresh phase in the development of MINI-Z performance and technology.

Features:

• MR-03 Chassis Set installed with brushless engine
• Complete bearing, ball differential, gold-plated battery power terminal equipment.
• Compatible with all current MINI-Z Racer body kinds.
• Unique brushless motor circuit board features 3 LEDs to indicate proper function.
• Redesigned upper address enables simple installing gyro.
• Suitable for optional components the MR-03 framework.
• Features newly developed revolutionary ‘VCS’ front suspension system that modifications camber angle along with suspension system system swing.
• ASF2.4GHz R/C system eliminates must handle regularity bands. One transmitter may be used with numerous models. **Transmitter comes individually.
• Built with electronic steering servo with integrated coreless engine.
• Coil springs on front suspension could be just changed by detatching the springtime stopper with just two screws.
• Features high effectiveness gold plated motor terminals.
• Pre-calibrated zero point steering environment.
• Brushless engine may be the identical size as current 130-class machines. Delivers outstanding durability and power.
• Newly developed brushless motor circuit board can be added onto the MR-03 framework. Designed with 3 LEDs to indicate proper procedure and ICS function.
• Upper cover redesigned to complement brand new circuit board and it is appropriate for all current human body kinds. Features area ahead for mounting optional gyro.
• Top quality silver plated motor terminals and silicon cables included as standard to control the high energy output.
• Ball differential unique version of Red anodized.

Kit Articles

• Factory assembled MR-03W framework installed with Team ORION XSPEED VE brushless motor.
• One-piece RA-27 receiver and brushless engine circuit board fashioned with ICS connector
• Modification parts for RM-type engine mount
• Upper and paid down dish and steering tie pole for (front part) slim tread (included)
• Front suspension system spacers for adjustment
• Pinion Gears (7T, 8T, 9T)
• Wheel wrench
• Pinion gear unit
• Pairing stick
• free wheel peanuts

Needed for procedure

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• AAA size alkaline batteries or Ni-MH x 4 for framework
• AAA size alkaline batteries x 4 for transmitter (KT-18), AA size alkaline batteries x 8 (EX-5UR)

*PERFEX EX-5UR ASF Transmitter

Chassis Technical Data

• Length:124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
• Width: 65~76mm
• Height: 34~35mm
• Wheelbase: 86~106mm(86,90,94,98,102,106)
• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
• Tire(F/R): 23.5~25x8.5mm / 25~27x8.5~11mm
• Gear Ratio: 7.3,6.3,5.5,4.9:1
• Body weight:135g approx.
• Motor: Team ORION XSPEED VE
