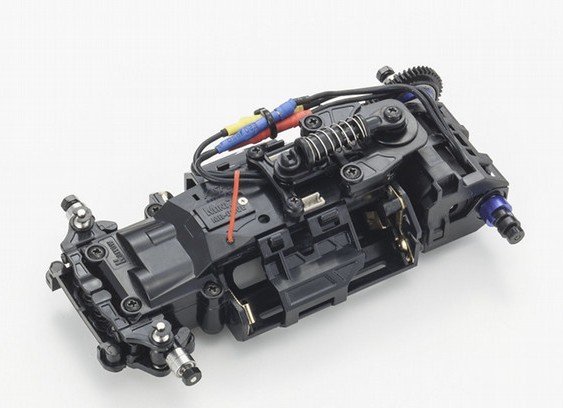

Kyosho 32782 MR-03VE PRO MM2 Chassis Set [KY32782]

Price:

AUD$332.42

Brand:

Kyosho

Model:

KY32782

GTIN:

4548565302215

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"

Description

16 times quicker compared to the previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster when compared with ASF 2.4GHz system + KO PROPO EX-1 combination, the ultrafast response of this MHS 2.4GHz system along with MR-03VE expert chassis set is ideal for JSCC course racers in MINI-Z Cup. Using its performance defining midship motor mount, new MM2 motor situation permits the longer (94mm) wheelbase become utilized. The prevailing MM engine situation design can be utilized aided by the LL (98mm), 3L (102mm) and 4L (106mm) wheelbases, nevertheless the new MM2 motor instance can be utilized with L, LL and 3L wheelbases. Additionally, compared to the current RM motor situation, mass balance is optimized to enhance cornering performance and minimize tipping due to high component on hybrid areas. These performance features provide a huge benefit within the JSCC class with all the slim human anatomy required by the regulations. Also, axle adjustment spacers enable alterations towards back axle shaft height and alongside this new artificial friction shock, accuracy setting predicated on road area conditions are possible. The numerous advantages of the MM2 engine instance complement the ultra-responsiveness associated with MHS2.4GHz system into the advanced MR-03VE PRO framework for psychokinetic-like reaction and a linear control feeling that knows the greatest goal of improved lap times.

MR-03 framework set set up with brushless engine allows mid motor mount with L wheelbase.

Rear axle shaft height are changed with axle adjustment spacers.

Equipped with new form plastic friction surprise as standard.

MHS 2.4GHz system provides the fastest control reaction in MINI-Z history.

I.C.S. system can be utilized with old-fashioned supervisor the VE

Features full ball bearings, ball diff (blue anodized), and silver plated battery terminal specifications.

Compatible with optional parts the MR-03 chassis.

distinctive front suspension system (VCS) changes camber in accordance with suspension system system stroke.

Compatible with ASF 2.4GHz system. **Transmitter offered individually.

Equipped with digital servo integrating coreless motor.

Coil springtime into the front suspension system can be merely changed by reducing the springtime stopper with just two screws.

TECHNICAL DATA

Length: 120-128mm

Width: 65-76mm

Height: 37.5mm

Wheelbase: 94.0-102mm(94, 98, 102)

Tread (F/R): 56.5-63.0mm

Tire (F/R): 25 x 8.5mm(sold individually) / 25 x 8.5-11mm(offered separately)

Gear Ratio: 7.3, 6.3, 5.5, 4.9:1

Weight: 135g

engine: Xspeed VE ECO Tune brushless motor

KIT ARTICLES

MR-03N-MM2 factory assembled framework create with Xspeed VE ECO Tune brushless motor

front side width modification components

Pinion gear (6T, 7T, 8T, 9T)

Wheel wrench

Pinion tools

free wheel peanuts

NECESSARY FOR PROCEDURE

ASF 2.4GHz transmitter KT-18, or MHS 2.4GHZ transmitter EX-6 *If using MINI-Z HYBRID SPREAD SYSTEM (MHS), requires compatible transmitter.

Vehicle Scale Collection (body set, wheels, tires)

4 x alkaline batteries or 4 x NiMH batteries for framework

4 x AAA batteries for transmitter
