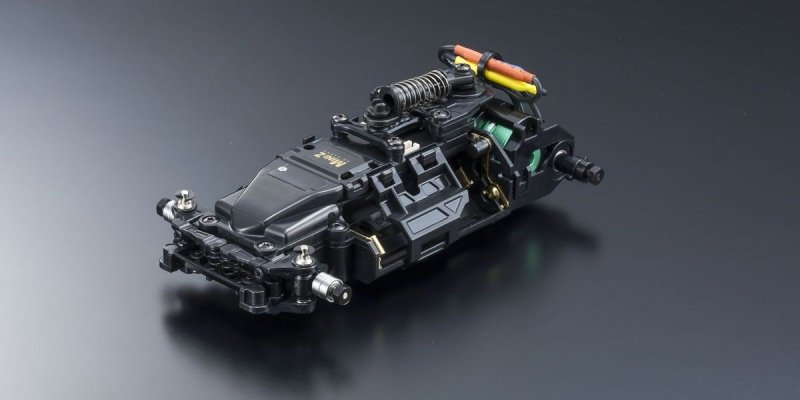

Kyosho 32794 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) [KY-32794]

Price:

AUD$0.00

Brand:

Kyosho

Model:

KY-32794

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

Description

The current MINI-Z is initiated receiver, servo and ESC by 1 controlled PCB unit. Even so the new MR-03EVO Chassis Set has split receiver as 1 unit. By purchasing and starting an optional receiver device according to used transmitter, permits for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by installing new CPU which control servo function simply, it improves interior feedback of placement control which will be 11.2 times faster than existing VE expert models. The newly developed control program understands the utmost effective ever steering feeling inside MINI-Z history. The ESC in addition improves the response price in optimum 100 times faster than current VE professional models. The newly developed KYOSHO SPEED RESIDENCE XSPEED 41 (4100KV) brushless engine features easy-to-drive power faculties and much longer runtime. Unlike previous chassis sets, you are able to alter to your brushed engine mode although I.C.S supervisor to include an optional brushed engine. The I.C.S supervisor also permits more accurate environment changes become made. New advanced performance features into the MR-03EVO just take the MINI-Z race experience to another degree!

Very first MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.

Includes brand-new KYOSHO SPEED RESIDENCE XSPEED 41 brushless engine (4100KV).

I.C.S manager features step-by-step steering and throttle parameter modification, along side switching between brushless and brushed modes.

Powered by split CPUs for ESC and receiver, increased internal processing price contributes to accuracy steering and throttle control.

Equipped with ball bearings.

Newly produced split receiver address and front top supply mount make tread modification easier.

Right for MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 chassis.

TECHNICAL INFORMATION

Length 117.7mm

Width 70~76mm

Height 35mm

Wheelbase 94.0mm (LL)

Tread F:61.5~63.0mm/R:61.5~63.0mm

Motor Mount MM2

Tires (F/R) φ25×8.5mm (sold individually)/φ25×8.511mm (sold separately)

Gear Ratio 7.36.35.54.9:1

Weight 135g (approx.)

Motor KYOSHO SPEED RESIDENCE / XSPEED 41 (4100KV)

KIT ARTICLES

MR-03N-MM2 Factory built framework with KYOSHO SPEED HOUSE XSPEED 4100KV brushless motor

Parts set for changing front tread

6T7T8T9T Pinion gears

Wheel wrench

Tools for pinion gears

Spare wheel nuts

REQUIRED FOR PROCEDURE

Receiver unit

Transmitter appropriate for receiver unit

Auto Scale Collection (human anatomy set, tires, tires)

AAA x 4 alkaline batteries or Ni-MH batteries for chassis

Batteries for transmitter
