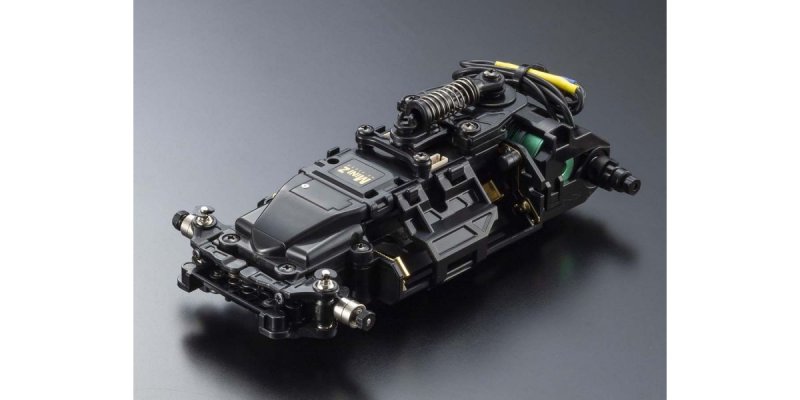

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)  [KY-32798]

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
Price:
AUD$247.10
Brand:
Kyosho
Model:
KY-32798
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
First released in December 2018 the MR-03EVO series delivered amazingly fast processing rate and showcased yet another receiver board that offered the flexibility of transmitter choice. couple of years following its stunning first, the MR-03 EVO lineup happens to be strengthened with a race-based framework. As yet the rate range environment have been KV5600 for wide chassis, but it is paid down an even to KV4100. While keeping the entire bearing specifications and Ball Diff Set II, align the beds base framework because of the new standard rate range and commence a wider amount of users. Through appropriate receiver products : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 supplies the optimal step-up from Readyset. Most likely the MR-03EVO framework set’s greatest advantage usually it's also in conjunction with a brushed engine (No.MZ9E, provided independently) to comply with a straight wider selection of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
●Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless engine (4100KV).
●I.C.S manager features detail by detail steering and throttle parameter adjustment, additionally switching between brushless and brushed modes.
●Powered by separate CPUs for ESC and receiver, increased interior processing price plays a part in accuracy steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II.
*Newly designed split receiver cover and front top supply mount render tread adjustment easier. *Compatible with MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 framework.

On the basis of the MR-03VE PRO chassis, newly developed split receiver target and front top supply mount make tread modification easier.

Receiver product are in the offing for KYOSHO, KO, FUTABA and Flysky transmitters and you will be attached/detached by detatching receiver address from upper framework.

New KYOSHO SPEED HOME brushless engine XSPEED 41(4100KV) features a one-piece aluminum example that understands efficient temperature dissipation.

Constructed with Ball Diff Set II that decreases weight of aluminum components on spur gear side and optimizes balance inside hub component. This is actually a must-have product and is utilized usually in competition-level racing.

Comprehensive ball bearing requirements minimize drive loss.



TECHNICAL INFORMATION

  • Length 119.5mm
  • Width 70~76mm
  • Height 38mm
  • Motor Mount MM2
  • Wheelbase 94.0mm (L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (offered separately)/25x8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (Body / tires / wheels perhaps not included, battery included.)
  • Motor KYOSHO SPEED HOME 4100KV


KIT CONTENT

  • MR-03W-MM2 Factory assembled framework with KYOSHO SPEED HOUSE KV4100 brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO PERFORM

  • Receiver unit
  • Transmitter ideal for receiver unit
  • Auto Scale Collection (body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
