Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT  [KY-33206]

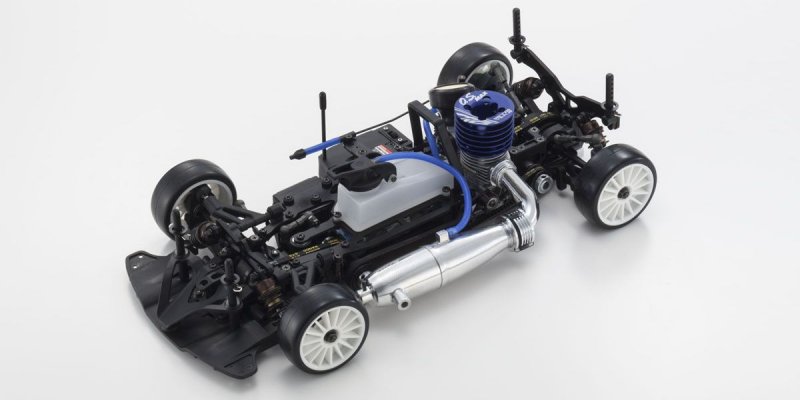

Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT
Price:
AUD$0.00
Brand:
Kyosho
Model:
KY-33206
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category
Write a review
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"
alt="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT" title="Kyosho 33206 - V-ONE R4s II 1/10 GP 4WD Touring Car KIT"

Having been within forefront regarding the battle scene for rubber-tired pure competition models, the V-ONE R4s (called R4s) has brought another evolutionary action applying this small modification. Plus the incorporation of key elements through the greatest specification type of the V-ONE R4 Evo. (known as Evo.) that maximized rushing rate through high power production of contemporary machines, each area was refined to deliver the superior performance regarding the completely new V-ONE R4s II variation. The alteration to smaller oil shocks has delivered the most significant improvement. By optimizing the conventional short-type oil shocks found in electric touring rushing because of this GP touring automobile, both lower center of gravity and increased maneuverability are accomplished. In addition, the shape associated with the radio meal combines with main framework item and weight-loss grooves on the basis of the Evo. to efficiently utilize framework roll and technical hold to give you improved grip stability. Further refinements complete the R4s II package to take performance and finish beyond expectations.


●Specially created for engines with straight back leaving exhaust as chosen by synthetic tire users.
●Features short type shocks and springs. Optional springs released as well since the kit offer range for establishing adjustment.
●Feel enhanced general hold security through framework roll from especially created R4s II main framework.
●Black FRP radio plate plays a role in optimal framework roll for improved road hold feel.
●Gear diff equipped on front area provides increased range for establishing modification.
●Centrifugal clutch requires no adjustment (separate clutch footwear).
●Most standard components and V-ONE R4s II 1/10 GP 4WD Touring automobile KIT for the Evo. works extremely well without modification to aid enhance performance and customization.


Built with new short-type oil shocks and springs. Shock instances are 2mm smaller compared to oil shocks for the R4s, but piston diameter is 1mm wider to maintain equivalent capability once the standard shocks.

Includes special R4s II surprise stays produced from FRP. 3 mounting jobs on front part and 5 on backside ensure it is not a problem finding optimal environment positions.

Lower center of gravity is recognized using the faster oil shocks that deliver both superior maneuverability and running security. In conjunction with the newly produced radio dish, framework roll is effectively utilized for outstanding running performance.

Specially created R4s II primary framework is founded regarding the primary framework the Evo. with revised fat loss grooves in the rear area. Superior roll characteristics with plastic tires understand improved general hold stability for the chassis.

Features the same fully enclosed radio industry due to the fact Evo. for improved crash opposition. Along with protecting the receiver from fuel oil during refueling, wiring problems may also be dramatically compensated off.

3D design the wing shaped front bumper through the Evo. delivers superior aerodynamics for enhanced cornering security and formidable styling.

Separate centrifugal kind clutch wont need adjustment. A range of optional clutch shoes and clutch springs can be seen environment towards preferred clutch feel.

The 2-speed gear is set towards the apparatus ratio suited to the paid off to moderate rate designs usually used at Kyosho Cup activities. (modification is required for high-speed designs).

Oil-filled front part and straight back diffs provide wide selection for developing adjustment. #300000 silicone oil for front side diff and #4000 for backside are included, nevertheless are free to alter predicated on your preference.


TECHNICAL INFORMATION

  • Length 368mm
  • Width 200mm
  • Height 105mm
  • Wheelbase 258mm
  • Tread (F/R) 174/170mm
  • Gear Ratio 1st gear 8.13 : 1 / 2nd gear 5.6 : 1
  • Tires 1/10 plastic tires (offered individually)
  • Weight 1,650g (approx.)
  • Engine 12-class motor with back exiting exhaust (offered individually)


KIT CONTENT

  • Unassembled chassis kit
  • 1.5, 2.0, 2.5, 5.0mm L-shaped hex wrench
  • Cross wrench (little)
  • Silicone oil (#300000/#4000 for diff / #500 for shocks)
  • Decals


REQUIREMENT TO RUN

  • 2ch~3ch transmitter & receiver for R/C cars
  • Servos x 2
  • Batteries for transmitter
  • Batteries for receiver (flat type)
  • 12~15 program motor with rear exiting exhaust / manifold / muffler
  • Glow gas for R/C models
  • Engine starting equipment (beginner field, gas pump, plug heater)
  • 200mm wide touring automobile body
  • Paint for coloring body
  • Rubber tires
  • Tire inners
  • Various tools
  • Instant glue
