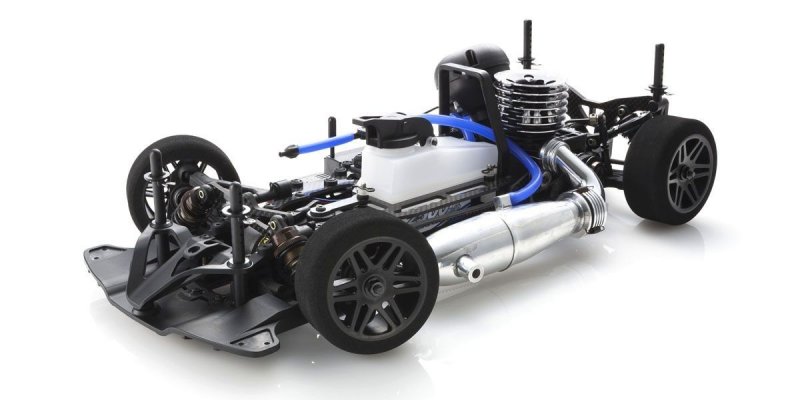

Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2 [KY-33211]

Price:

AUD$0.00

Brand:

Kyosho

Model:

KY-33211

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category

Write a review

Description

The V-ONE R4 show has a reputation built on proven performance in major events in Japan and around the world. Since its launch, the V-ONE R4 has maintained its sporting benefit through constant improvement now takes an evolutionary step using the amazing Evo.2. On the basis of the previous Evo. platform, important components for instance the primary chassis and top deck had been redesigned in new V-ONE R4 Evo.2 for optimal rigidity and superior performance with modern high-power machines. Increased technical hold is accomplished split of tire grip and complies with competition guidelines with managed tires. The V-ONE R4 show is celebrated because of its low center of gravity, that's further enhanced by brief oil shocks that deliver increased cornering rate on high-grip areas while preventing highside. Improvements towards clutch and braking system rotor are further improvements in R4 Evo.2, rendering it an ideal machine to see superior racing in tasks including the Sports Class throughout the 2018 JMRCA 1/10 Engine Touring vehicle nationwide Championship.

●Evo.2 features improvements to key components while keeping the most truly effective associated with V-ONE R4 Evo.
●Newly designed primary framework and top deck deliver also greater mechanical grip.
●New braking system rotor included as standard improves driving feel at low price.
●Front universal move shafts increase drive effectiveness and expel risk of drive shafts coming loose.
●Hook pin guaranteed fuel tank is effectively eliminated and installed.
●Equipped with front knuckle and backside hub that can be fitted with optional carbon disk.
●Compatible aided by the majority of existing optional components.

Retains the top associated with the V-ONE R4 Evo. with improvements through redesign of critical elements. Steering post revised for optimal Ackerman ratio and improved cornering speed.

Grooved main framework further increases technical hold and combines with newly created upper deck to create perfect roll and pitching rigidity.

Shorter oil shocks on front and backside understand reduced center of gravity to enhance cornering price. Shock springs may included as standard and are also optimized to be used with sponge tires.

Special 3D rushing clutch the Evo.2 maximizez motor performance. Revised clutch footwear material with tiny diameter flyweel realize both improved throttle response and higher end speed.

Aerodynamic 3D design front side bumper increases cornering security and enables high speed cornering performance.

Compact radio box protects the receiver and wiring from crash harm and gas splashes during refueling.

TECHNICAL INFORMATION

Length 368mm
Width 200mm
Height 105mm
Wheelbase 258mm
Tread (F/R) 174mm/170mm
Tires (F/R) provided separately
Gear Ratio 7.18/5.09 : 1
Weight 1,700g (approx.)
Engine 12-15 Class (sold separately)

KIT CONTENT

Unassembled chassis kit
Steering servo horn suited to major brand name R/C systems
5.0mm L-shape hex wrench
Cross wrench (little)

REQUIREMENT TO RUN

2ch-3ch R/C vehicle transmitter
Receiver
Servos x 2
Switch
Batteries for transmitter
Batteries for receiver (flat pack)
12-15 course motor with right back leaving exhaust
Manifold
Muffler
Glow gas (for R/C models)
Engine beginning gear (novice package, fuel container, plug heater)
200mm width touring car body
Paint for automobile body
Wheels and tires
Tools
Instant glue
