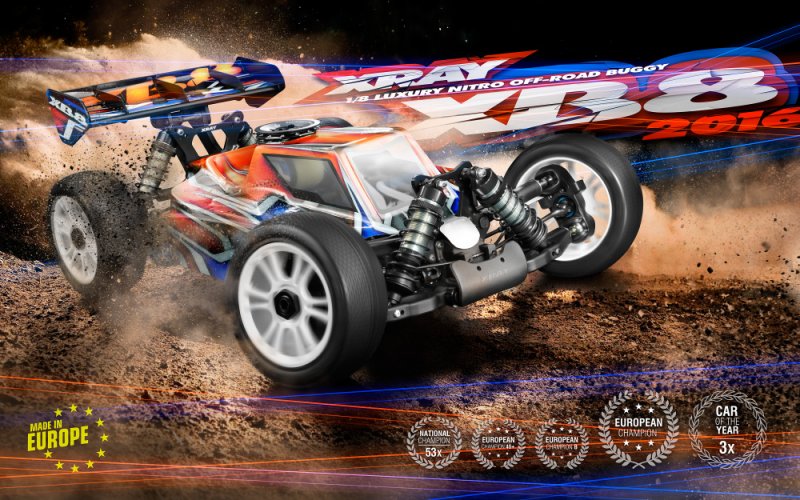

XRAY 350011 XB8 2016 Specs  [XR-350011]

XRAY XB8

All-new 2018

• All-new framework with additional room between front tires and component guards, new positions for backside brace for improved chassis flex faculties and chamfered front sides for less dirt pick-up

• All-new framework design is currently fully suitable between XB8 & XB8E platforms

• All-new 40percent lighter wing mount with super low CG alongside quite a bit less fat behind a corner suspension system system considerably improves managing traits for the vehicle and featuring all-new construction allows more flex too features fresh more optimized wing mounting positions

• All-new rear brace between wing mount and back framework brace stops straight back gearbox breakage during impacts aswell moves the transfer of power to various an element of the chassis

• All-new fat transfer from wing toward center the automobile with reduced tension regarding right back diff bulkhead

• All-new back body holder

• All-new back shock tower features two lines of shock absorber mounting roles and also the updated design permits to fit brand new wing mount and gearbox brace

• All-new harder straight back paid down fingers for increased part security and enhanced durability in hot conditions

• All-new more powerful & strengthened steering ball joints for increased reliability

• All-new composite graphite shims between steering ball and nut guarantees free procedure of pivot balls even in extreme dusty conditions

• All-new improved diff O-rings to get more exact differential sealing

• All-new softer surprise membranes for enhanced surprise performance in bumpy conditions

• Rear CVD drive shafts for increased rear traction

• New 2.6mm straight back sway club for increased traction

• All-new exhaust mounting wire with improved fit

• All-new better brain screws for diff bulkheads for much more reliable

• High-speed human anatomy for improved managing on high-speed tracks & with additional rotation in tight corners

Chassis

• CNC-machined chassis created from 3mm top-quality Swiss 7075 T6 aluminum
• Strategic machining for ultra-light fat and uncompromised energy & rigidity
• XRAY Multi-Flex Technology™
• Chassis design fully compatible between XB8 & XB8E platforms
• Engine parallel with chassis centerline, center diff placement for straight-line main drive shafts
• Countersunk screw holes on framework base for smooth underside
• Chamfered front edges on framework at a lower price dirt pick-up
• Pre-drilled holes for additional balancing weights
• Pre-drilled centerline holes for use with HUDY Chassis Balancing Tool
• 1-piece electronics installation is compact and an easy task to remove
• Side guards for better security and improved traction
• Chassis braces for increased flex, better traction, and eradication of vibration from suspension
• Rear brace between wing mount and straight back framework brace stops back gearbox breakage during impacts and moves the transfer of power to different the primary chassis
• Large, easy-access, molded radio box
• Super strong diff bulkheads
• Strong head screws for diff bulkheads for better reliability
• Composite top deck with optimized flex which results in increased traction and enhanced steering characteristics.
• Connecting website link between throttle servo and radio field, for reduced total of vibrations to chassis and much more exact throttle & braking system control.
• Premium Swiss 7075 T6 surprise towers.
• Rear surprise tower features two lines of surprise absorber mounting roles

Engine & Clutch

• High-grade, CNC-machined extensive aluminum engine mounts for greater reinforcement of framework inside the longitudinal way, reduce framework bending after jumps
• High-torque clutch for smooth and constant energy transfer at high RPM
• Swiss 7075 T6 aluminum flywheel has a small diameter, increased fat for smoother and many other things balanced engine operation
• Hard Swiss 7075 T6 aluminum clutch footwear enable smoother engagement
• Extra-tough Hudy Spring Steel™ flywheel nut
• Smooth-flowing, efficient 2-part air filter
• Extra-strong gas tank produced from unique composite combination features a floating stone filter and interior baffles to make certain constant fuel supply
• Fuel tank mounting with synthetic grommets to soak up vibration

Brakes

• Well-proven, superior stopping system for strong, exact and dependable stopping performance.
• Laser-cut, accuracy flat-ground steel stopping system disk is hand-ground for genuine, wobble-free rotation
• Special high-grip braking system pads installed on laser-cut brake plates
• Rigid, high-precision machined braking system cam articles

Drivetrain

• Conventional shaft-driven 4WD down road drivetrain
• Large volume front & back gear differential with adjustable oil viscosity featuring 46T crown gears and 14T pinion gears
• Large volume main differential with adjustable oil viscosity featuring large 46T spur gear with standard 13T engine clutchbell
• Front universal drive shafts provide less opposition ahead at maximum steering angle.
• Rear CVD drive shafts for maximum back traction
• Front & back main CVD drive shafts
• All drive shafts constructed from HUDY Spring Steel™
• Central big & strong outdrives function protective synthetic shoes, thick 3mm pins, and a protective locking ring
• Ultra-lightweight 17mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 black-coated aluminum
• Full group of 24 high-speed, greased, blue-sealed ball-bearings verify maximum effectiveness

Differentials

• Large amount high precision front side, primary, and right back gear differentials Rubber-sealed composite differential housings with reinforced interior diff gears with an increase of teeth and enhanced enamel profiles
• Differential internal gears made out of pressed metal, temperature addressed, and machined for ultra‑high precision and smooth operation
• Super-lightweight diff outdrives machined from HUDY Spring Steel™
• Easy utilization of center differential
• Center diff housing is sized to aid optional spur gears
• Differential main gears constructed from HUDY Gear steel

Suspension

• Longer rear arms bring about the automobile more straightforward to drive for most monitor conditions
• Harder backside reduced arms increase part stability and improves durability in hot conditions
• Pivot ball suspension system concept to stop binding in dusty conditions, while ensuring stable journey height in every traction conditions
• Ultra-robust pivot ball suspension system with integrated suspension system geometry modification; various kingpin meals being the only optionally-available tuning parts
• Integrated Suspension Settings™ (I.S.S.) for fast & effortless suspension system geometry setting
• Suspension hands with optimal size, depth, freedom, geometry of suspension system points, and item traits.
• Suspension arms would be the outcome of substantial design knowledge and exhaustive testing
• Exclusive composite mixtures developed in-house by XRAY provide perfect stability between dependability and gratification, rigid enough to give you a responsive feel yet soft adequate to endure extra-long main occasions and impact
• Extra-strong & robust front top hands take care of pivot ball suspension system system.
• Front top pivot balls are along side steel threaded component for maximum power; aluminum ball is machined from premium Swiss 7075 T6 and of course hardcoated for longer lifespan
• 2-pivot ball, super-lightweight composite steering obstructs
• Trailing-axle steering obstructs provide an amazing maneuvering improvement in many track conditions, making the automobile more straightforward to drive and offering increased forward traction
• Turnbuckles produced from unique mixture of HUDY Spring Steel™ especially formulated for turnbuckles
• Front & straight back anti-roll pubs manufactured from springtime metal material
• Rear 2.6mm sway club increases back traction related to automobile

Steering

• Servo saver moulded from graphite material which is more resistant and efficient in dusty conditions
• Redesigned steering pivot balls to remove wheel lock
• Dual-arm steering system with adjustable Ackermann
• Stronger & reinforced steering ball bones for increased reliability
• Composite graphite shims between steering ball and nut make sure free procedure of pivot balls in extreme dusty conditions
• built-in, effortlessly adjustable servo saver
• Swiss 7075 T6 aluminum steering plate
• Quick & easy Ackermann and bump steer adjustment
• HUDY Spring Steel™ turnbuckles

Shocks

• Big-bore, long-stroke shocks for ultimate dependability and performance
• Shock numbers are externally hardcoated
• Shock human anatomy outside threading for fast & easy springtime preload adjustment
• Longer back shock human body for improved effectiveness in rough, bumpy conditions
• Robust 3.5mm super-smooth polished shock shafts
• Longer surprise shafts & shock collar for increased downtravel
• Ultra-fine surprise protective rubbers for superior sealing against dirt
• Ultra-precise big-bore 6-, 8- and 10-hole shock pistons made out of Delrin™ material for smooth procedure and durability
• Specially-formulated plastic shock membrane guarantees equal damping
• Shock membranes from softer item for improved shock performance in bumpy conditions
• Lower shock construction features numerous top-quality silicone O-rings for smooth, free, leak-free operation
• Front & rear surprise springs feature many different modern & linear prices; the springs are somewhat modern, but under larger compression they change faculties to are far more linear to offer excellent feeling & feedback in most various track conditions.
• Specially-designed surprise springs happen created specifically to check on the big-bore shocks
• Shock springs are manually measured, selected and matched into pairs to make certain properly equal size and damping characteristics
• HUDY Premium Silicone sebum are manufactured in European countries by a specialized premium silicone oil manufacturer. Each batch of premium oil is laboratory tested and calibrated to ensure the highest possible persistence and quality batch-to-batch. On the basis of the industry-standard cSt score, the sebum are going to be quite simple to identify, adjust, and feel.

Body & Wing

• High-speed body for improved control on high-speed songs & with extra rotation in tight corners
• High-quality Lexan™ human body totally fits the car and works generally in most track conditions
• Composite side guards protect the car, muffler, and fuel tank from side hits. The inside guards completely fit the framework and seal against dust. Ribs on staying component guard protect the gas tank from muffler heat.
• Stylish, effective, and strong back wing is manufactured away from strong distinctive composite mixture, built to endure serious abusive and extreme crashes while maintaining its shape
• 40percent lighter wing mount with super low CG and with much less fat behind the trunk suspension system significantly improves managing faculties from the vehicle and featuringconstruction that allows more flex too features more optimized wing mounting jobs

Assembly & Support

• Premium 3D full-color guide & additional sheet
• Exclusive Virtual on the net Setup Sheet database with a large number of setup sheets for battle tracks throughout the world
• Premium, unmatched XRAY on the internet support

Adjustment Possibilities:

The XB8 features fully-adjustable front part and right back suspension geometry. For fast & effortless modification, we recommend utilizing set-up tools and add-ons from HUDY, the whole planet frontrunner of RC tools.

The considerable and impressive selection of adjustment opportunities includes:

• Caster
• Camber
• Toe
• Kick-up
• Anti-dive
• Anti-squat
• Ride height
• Downstops
• Track-width
• Lower roll center
• Upper roll center
• Roll center positions
• Bump steer
• Wheelbase
• Ackermann
• Adjustable shocks
• Adjustable front side and back diffs
• Adjustable XRAY Multi-Flex™

All needs are susceptible to change without prior notice. Pre-production model is shown, last specifications may slightly differ. In a few pictures optional elements could be shown. All choice components are not included and needs to be purchased separately. Along with of some aluminum parts can vary significantly from kit to kit and several regarding the kits may not consist of the orange or black components as shown. A number of the extra elements or option parts might not be provided by whenever in orange or black colored color as shown. A few of the images expose colored stickers on wing and radio tray, they truly are maybe not in the kit and they are found in photos limited to marketing purposes. The rushing body within the industry is clear and unpainted.
