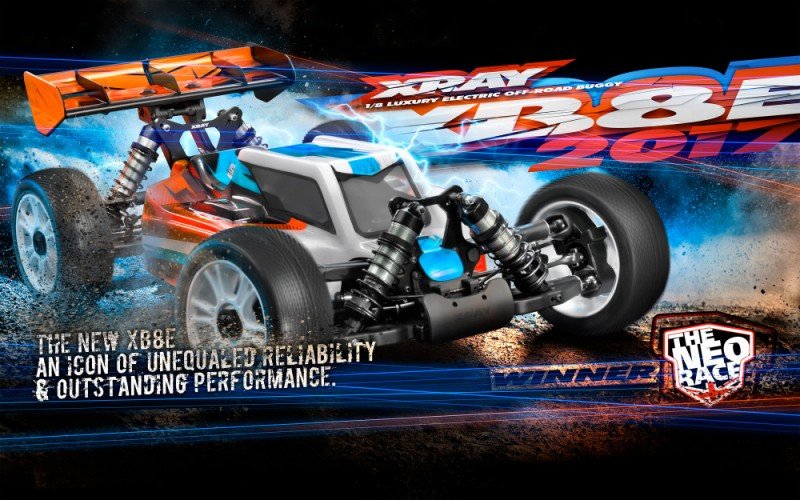

XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car  [XR-350154]

Dimensions

• Length: 500 mm
• Chassis size: 399.5 mm
• Wheelbase: 322~328 mm
• Width: 310 mm
• Weight: 2014 g
• Approximate operating weight: 3450 g

Chassis

• Chassis: 3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum
• Receiver tray: CNC-machined 2.2 mm graphite
• Radio situation: Composite
• Front upper deck: CNC-machined 2.5 mm graphite
• Central diff top deck: CNC-machined 2.2 mm graphite
• Braces: Composite braces (front side / backside)

Suspension

• Suspension: Pivot ball completely adjustable suspension
• Rear suspension system system: Lower H-arm with adjustable top camber link
• Front suspension system: Lower H-arm with adjustable top camber link A-arm
• Rear upright: Composite with double supply mounting and 2 paid off roll center roles and top aluminum plate with 3 top roll center functions
• Shocks: Big-bore shocks with different surprise pistons featuring Delrin™ pistons
• Shock towers: Front & rear 4.0 mm alu

Drivetrain

• Type: Full-time shaft-drive 4WD w/ center differential
• Primary: metal spur gear / pinion
• Drive shafts: HUDY Spring metal™ universal drive shafts
• Central shafts: HUDY Spring Steel™ CVD drive shafts
• Differentials: Sealed, 6 gear, silicone-filled
• Bearings: Rubber-sealed

Gearing

• Pinion: 14T front part / rear
• Crown gear: 46T front / rear
• Pinion gear: maybe not included (optional 12T~17T)
• Spur gear: 46T
• Primary ratio: 3.33
• Final gear ratio: 11.79

Body, tires, wheels & misc.

• Body: XRAY XB8'16 body
• Tires: not included
• Wheels: perhaps not included, standard 17 mm hub

Modification possibilities:

• Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, reduced & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, fat balance

Itemms perhaps not included

•   Electrical Motor, Electronics (broadcast, Receiver, Steering Servo, battery power, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel device, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal device for all nuts and turnbuckles, Set-up Book
