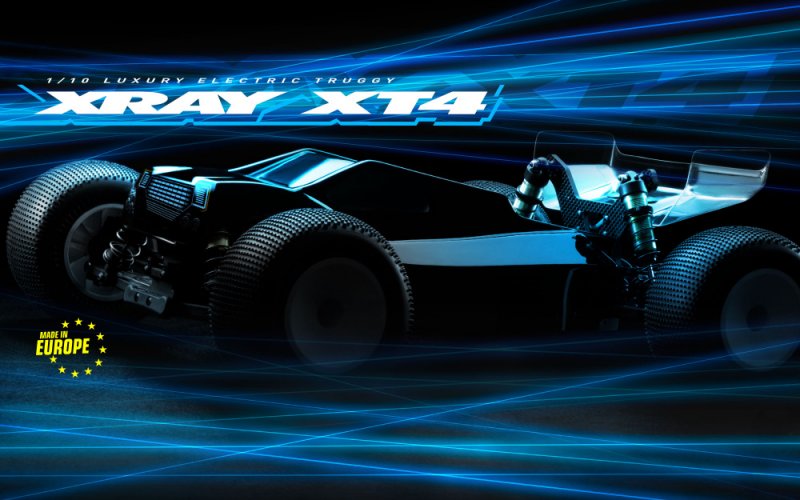

XRAY 360200 XT4  [XR-360200]

XRAY XT8 All-new Specs:

• Chassis ha considerably longer design with fat relocated on front
• Improved fat balance using the fat relocated frontwards increases rotation connected with truggy plus cornering speed, better bouncing, and providing more forgiving handling
• All-new big ability 150cc vehicle's gas tank with super-short design allowing positioning towards the front
• Side guards integrate an even more substantial base radius to make the truggy more stable on rough songs, while also increasing the longitudinal flex
• Improved suspension system holders
• Front & right back paid down suspension arms feature a new reinforced design, making them more resilient in jumps and crashes
• Rear paid off external pivot pins work self-locking peanuts for increased reliability
• Included steel eccentric bushings & ball mounts for increased reliability
• Steering system with moulded graphite servo saver to get more efficiency in dusty conditions
• Aluminum steering dish gives more linear, more accurate, and more aggressive steering because of narrower Ackermann design
• Composite front upper top deck for added flex & increased steering
• Steering pivot balls with backstops for increased reliability
• Composite front part framework brace provides added front part flex; straight back double composite braces with a graphite framework extension for flex adjustment
• Reinforced, strengthened bulkheads
• Large amount front side, main, and back differentials for enhanced long-run performance and paid down interior temperature build-up
• All-new diff components: more powerful 2.5mm diff pins, much longer get across diff pins, improved  interior diff gears with re-profiled teeth for paid off friction and smooth procedure, improved gaskets
• Lightweight machined diff outdrives
• 50T center diff gear for improved acceleration
• Graphite center diff mounting plate, redesigned to fit the new 50T spur gear
• Aluminum front side & back shock towers provide increased lifespan, and all-new shock & roll-center positions
• Longer, larger-volume shock absorbers with a rise of downtravel, groundbreaking shock systems, shock shafts, surprise springs, and pistons
• All-new center front & back CVD drive shafts
• All-new front & back universal drive shafts
• +5mm offset wheel axles
• Flat-spotted wheel hex hub connecting pins for increased reliability
• Radio package produced from softer, more flexible composite material
• Aluminum engine mounts carried over from XB8 platform
• Anti-roll pubs carried over from XB8 platform
• Redesigned, newly-sized turnbuckles

General

• Developed, produced and styled by Dipl. Eng. Juraj Hudy, manufactured solely by XRAY in Europe internationally's numerous higher level RC production facility
• Premium, expert, high-competition model rushing vehicle the many demanding racers
• Manufactured from premium European materials, machined using higher level Swiss and German machines
• Premium XRAY solution & support

Chassis

• CNC-machined 3mm Swiss 7075 T6 aluminum
• Strategically machined in low-stress areas for lightweight and uncompromised strength and rigidity
• Optimized fat circulation for improved balance and security
• Non-essential material underneath the motor, fuel tank, and diffs had been eliminated to allow for the cheapest possible center of gravity and appropriate framework flex
• Countersunk underside screw holes for an appartment, smooth framework bottom
• Side guard design provides superior part security, seals against dirt, protects the fuel tank
• Compact, 1-piece radio dish created from robust yet flexible composite item may be quickly & effortlessly eliminated for servicing and cleaning
• Super-short 150cc fuel tank relocated ahead in framework; features molded-in splashguard, and synthetic mounting grommets for vibration usage, and an integral floating stone filter for improved gas pickup
• Super-strong reinforced diff bulkheads offer mounting points for suspension system mounts and surprise towers, and permit super-easy diff access
• Well-proven composite front side solitary & back double framework braces have in fact an amazing affect framework tightness and framework flex; optional graphite inserts provide improved flex tuning opportunities.

Motor & Clutch

• High-grade CNC-machined aluminum motor mounts machined from lightweight alloy are easily adjustable to acquire appropriate gear mesh
• Extended motor mount design provides greater reinforcement concerning the framework to cut back chassis bending between the clutchbell and spur gear
• Smooth-flowing, efficient air conditioner filter includes air filter oil and a universal plastic elbow to fit most standard 1/8 buggy engines
• Clutch system provides smooth and continuous transfer of energy from motor at very high RPM; includes aluminum 1.7g lightweight clutch footwear, 1.0mm springs, aluminum flywheel and a metal flywheel nut
• Clutch nut and preload modification collar constructed from unique HUDY Spring metal for optimum lifespan and durability
• Wide selection of various clutch gears readily available for perfect set-up and modification for particular race conditions.

Brake system

• Well-proven, high-performance braking system
• Strong, accurate, dependable braking for complete confidence
• Aluminum stopping system 7075 T6 hub with precision-pressed pins
• Laser-cut, accuracy flat-ground steel braking system disk for ultra-efficient, fade-free braking
• Rigid, high-precision machined stopping system cams
• High-grip brake pads
• Heat-treated braking system disk and braking system pads for maximum lifespan

Drivetrain

• Conventional shaft-driven 4WD drivetrain
• Front and right back universal drive shafts
• Center front side & back CVD drive shafts
• Diff outdrives made of exclusive HUDY Spring Steel are especially hand-ground for optimum precision and smooth procedure; very long front outdrives help alleviate problems with drive shafts from falling out in extreme crashes
• Universal & CVD drive shafts made out of world-renowned HUDY Spring Steel are some from the world‘s thinnest yet many durable drive shafts employed in off-road kits
• Central big, strong outdrives feature protective synthetic footwear, thick 3mm pins, and a protective locking rings
• Ultra-lightweight 17mm wheel hex drive hubs with +5mm offset are CNC-machined from Swiss 7075 T6 black-coated aluminum, especially machined to cut back rotating weight while guaranteeing wobble-free wheel mounting.
• Complete band of 24 high-speed, blue-sealed ball-bearings utilized through the entire drivetrain to be sure maximum effectiveness.

Gear Differentials

• High-volume gear differentials with larger internal gears & more teeth, better diff pins have actually superior traction and reliability
• Front & right back gear differentials with adjustable oil viscosity, featuring 43T crown gears & 10T pinion gears
• Central gear differential with adjustable oil viscosity, featuring 50T spur gear &  standard 13T motor clutchbell
• Differential primary gears manufactured from HUDY Gear Steel, especially formulated and developed for use in gears.
• Large-size, heat-treated internal diff gears have actually in fact more teeth to ensure more accurate fitment and engagement

Suspension

• Advanced suspension system geometry engineered and finely tuned for high-competition racing
• Truggy-specific suspension ended up being specially created for 1/8 truggy race to supply responsive race traits in every rushing conditions
• Lightweight yet durable suspension system parts molded from XRAY's own composite combination for suspension parts
• Super-long suspension system system arms provide maximum security and optimal tightness to make sure optimum traction, superior management under all rushing conditions and terrains
• Front & back CNC-machined Swiss 7075 T6 aluminum shock towers include multiple surprise mounting & roll center adjustment positions
• Fully-adjustable suspension featuring I.S.S. (integral Suspension Settings) with eccentric bushings inserted into Swiss 7075 T6 aluminum holders
• Complete couple of I.S.S. eccentric bushings is roofed for complete suspension system geometry adjustment.
• distinctive C-hub suspension system with incorporated Adjustable CasterTM which enables modification for the solitary C-block through the complete caster angle range; no optional caster obstructs needed!
• C-blocks feature an inclined kingpin design for increased steering and stability
• Steel caster bushings and ball mounts for superior energy & reliability
• Small, super-lightweight composite zero kingpin steering blocks work an inset aluminum bushing which molded towards the steering block itself, ensuring a lightweight, exact and durable steering block installation.
• Steering block kingpin screws are securely held in aluminum threaded bushing whilst the end the screw is self-locked in composite in order to avoid the screws from loosening during race. The molded-in aluminum bushings permit the steering obstructs to make easily ensuring exact steering reaction.
• Compact, lightweight back uprights with many top & reduced roll center jobs, and wheelbase modification possibilities
• Front & rear wire-style anti-roll pubs made of spring metal item are included to guide the framework at both front and rear
• Diff instance mounts for anti-roll bars help simple installation and adjustment
• Premium Hudy Spring metal adjustable turnbuckles

Steering

• Robust dual-arm steering system is simple yet effective and features a built-in effortlessly adjustable servo saver
• Molded graphite servo saver makes the steering more resilient & efficient in dusty conditions
• Aluminum steering plate gives more aggressive steering characteristics
• Composite upper top deck adds flex to greatly help steering
• Steering pivot balls with backstops for increased reliability
• Easily-adjustable Ackermann making use of different steering website link mounting jobs regarding steering plate
• Easily-adjustable bump steer utilizing inserted shims

Shocks

• XT8 big-bore, long-stroke shocks provide increased downtravel, reliability, performance, and improved damping characteristics
• Oversized big-bore hardcoated surprise bodies
• Shock human body large 16.2mm inner diameter guarantees proper and constant surprise oil motion through perfectly-round pistons which move really properly in smoothly-finished interior concerning the shock body
• Externally-threaded shock figures for quick & simple adjustment
• Two shock O-rings – made out of an exceptional silicone mixture allowing ultra-free motion the surprise rod while nevertheless maintaining a significant seal – are set up inside reduced the primary shock body and so are guaranteed with composite shims
• Ultra-precise shock pistons with 6-, 8- and 10-hole molded from Delrin® item for smooth action and reliability
• Thick 3.5mm shock shafts made for maximum power & durability are precision-ground and super-smooth free of charge and smooth movement
• Specially-formulated synthetic product connected with surprise membrane layer ensures equal damping traits from the beginning of this battle towards end, despite extreme use
• Reinforced ball joints
• XT8 shock springs offer a mixture of modern & linear characteristics; manually calculated,  hand-selected for optimum accuracy, equal length, and equal damping characteristics

Body & Wing

• Strong front & back composite human anatomy mounts with foam cushions; two types of back human anatomy mounts included depending on the variety of our body utilized.
• Stylish and effective rear wing made out of unique composition wound up being created for appropriate downforce and safety, and that can stay intact and exactly shaped even with difficult punishment and extreme crashes
• Strong back wing holders offer various wing mounting positions

Lubricants

• Included HUDY Premium Silicone natural oils, stated in countries in europe by a specific premium silicone oil maker, and make use of the industry-standard cSt rating
• Premium HUDY Graphite Grease is a high-performance, advanced-technology semi-fluid lubricant which includes both extreme force ingredients and finely-dispersed graphite for load carrying
• Graphite Grease is supposed primarily the lubrication of rotating parts and stuffed gears, which can be formulated to have excellent adhesion and fling opposition under extreme conditions

Assembly, Set-up & Support

• Premium 3D full-color guide & extra sheets
• To grasp the set-up possibilities we suggest the famous HUDY Set-up Book (available for down load solely at www.hudy.net) that will be laden up with over 50 pages of top-notch pictures and easy-to-read RC vehicle set-up explanations
• Exclusive Virtual on the web Setup Sheet database with large numbers of set-up sheets for race tracks around the world
• Premium, unmatched XRAY on the net support

Adjustment Possibilities:

• Fully-adjustable front part and rear suspension system geometry: caster, camber, toe, kick-up, anti-squat, ride height, downstops, track-width, anti-roll bars, paid off roll center, top roll center, roll center jobs, bump steer, wheelbase, Ackermann, shock damping, shock mounting spot.
• Front/center/rear differential adjustment
• For easy and fast modification we recommend utilizing set-up tools and add-ons from HUDY, the entire world frontrunner of RC tools.

All specs are at the mercy of change without prior notice. Pre-production model is shown, final specs may significantly vary. In some images optional components could be shown. All choice components aren't included and may be bought separately. Along with of some aluminum parts can vary from kit to kit and some for the kits may well not add the majority of the orange or black components as shown. A number of the spare components or option components is probably not provided by the moment inside orange or black colored color as shown. Some of the pictures expose colored stickers on wing and radio tray, they're maybe not included in the kit plus they are found in pictures just for marketing purposes. The race human body alongside gear shown in images aren't within the kit.
