Futaba 3PM 3-Channel FM 27or40MHz/ R153F/ 2xS3003  [3PM_C1]

Futaba 3PM 3-Channel FM 27or40MHz/ R153F/ 2xS3003
Price:
AUD$108.86
Brand:
Futaba
Model:
3PM_C1
Condition:
Brand New
Write a review

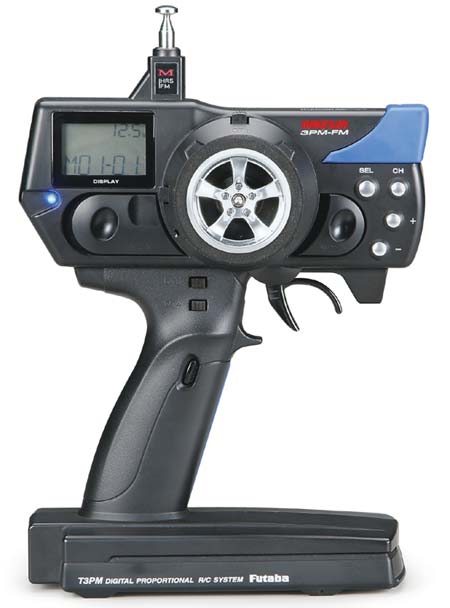

This is actually the Futaba 3PM FM 3-Channel Surface Computerized Pistol Grip Radio due to the R153F Receiver and two S3003 Standard Servos.

QUALITIES:
  • 10-model memory
  • Alphanumeric LCD display with a high intensity Blue LED monitor, are changed to three different brightness levels
  • Condition switch-in particular functions low rates could be create and switched with SW1 switch at exactly the same time during a run
  • Alarm buzzer
  • Model copy and clear functions
  • ABS Braking
  • Brake blending for big vehicles
  • One-channel system mixing
  • Steering and throttle Expo
  • Servo reversing on all networks
  • End aim Adjustment (EPA) for many companies
  • Multi-function timer up/down with lap memory
  • Steering twin prices
  • Throttle ATL
  • Digital trims
  • Function choose dial/switch
  • Steering rate
  • Charge jack for optional NiCds
  • 12 months warranty
INCLUDES:
  • One 3PM FM Transmitter
  • One R153F FM receiver (FUTL0364)
  • Two S3003 Standard Servos (FUTM0031)
  • One crystal set (FUTL97**)
  • One receiver battery power industry w/"J"connecter (No Number)
  • One switch harness (FUTM4350)
  • Two accessory package w/rubber grommet, screw, metal eyelet (FUTM3551)
  • One regularity flag set
  • One instructions
  • * Optional Transmitter NiCd: (FUTM1462) or FUTM1440
  • * Optional Receiver NiCd: (FUTM1295)
  • * Optional NiCd Charger: (FUTM1830)
SPECS:
  • S3003 Servo x 2
    • Torque: 56.9 oz-in (4.1 kg-cm)
    • 0.19 sec/60X
    • Energy Requirement: 4.8V or 6V
    • Size: 1.59" x 0.78" x 1.42" (40.4 x 19 x 36mm)
    • Weight: 1.31oz (37.2g)
  • Transmitter:
    • Modulation: FM (HRS/PPM switching feasible)
    • Energy Requirement: 8 AA cells or NT8F700B NiCd battery (9.6V)
    • Current Drain: 250mA or less
  • R153F Receiver
    • Energy needs: 4.8 to 6.0V (distributed to servos)
    • Frequency: 75MHz
    • Size: 1.5" x 1" x 0.6" (37.7 x 25.4 x 14.3mm)
    • Body fat: 0.50oz (14.1g)
