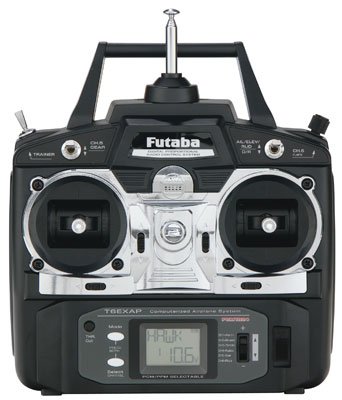

Futaba 6EXAP 6-Channel FM 40MHz/ R136F/ 4xS3003  [6EXAP_C1]

FEATURES:

• Aileron, Elevator and Rudder double cost switch - employ this modification to flip between two aileron, elevator and rudder control throw settings. The tosses could possibly be arranged however prefer, but generally speaking, whenever switch is up the throws are greater (higher level) as soon as the switch is down the throws are less (good deal). This switch in addition flips between exponential costs (if utilized).
• Flap control dial/Channel 6 - This dial runs the servo associated with channel 6 within the receiver whenever your model has flaps this is actually the control used to run them.Aileron/elevator control stick -Mounting point for optional neck strap.
• Trim levers (all) -Used to move the neutral or center host to each servo as labeled inside diagram.
• Asking jack - Port for billing the transmitter batteries using the included battery pack charger.
• On-off switch
• DATA INPUT lever - accustomed replace the values with this different functions exhibited regarding LCD display.
• Liquid-crystal display (LCD) - Displays development modes and values entered.
• MODE key - frequently scroll through and display the ten or eleven(PCM) various functions.
• SELECT key - regularly reveal the values the present function.
• Throttle-cut switch - to work well with the throttle-cut function, lower the throttle stick entirely, then drive the throttle-cut key to totally close the carburetor and shut the motor.
• Throttle/rudder control stick - runs the servos connected to channel 3 (throttle) and channel 4 (rudder) within the receiver.
• Trainer switch - operates the trainer functions. To work as a trainer switch the transmitter must certanly be attached to another transmitter via. a trainer cable (available separately).
• Retractable landing gear switch/Channel 5 - modification operates the servo connected to channel 5 in to the receiver if the model has retractable landing gear this may be the control used to expand and retract the gear.
• Antenna - Radiates signals towards the receiver. Never ever travel a model without completely expanding the antenna or maybe you'll create interference to a lot of other modelers and decrease functional sign selection of the transmitter. The antenna might be removed and changed with another in case it is unintentionally broken.

INCLUDES:

• Futaba 6-Channel 6EXAP transmitter
• Futaba R136F Receiver
• Four Futaba S3003 Servo
• Change Harness
• Handbook

SPECS:

Transmitter

• T6EXAP Transmitter with programmable mixing and 6-model memory.
• Transmitting on 40 / 72 MHz musical company.
• Os: 2-stick, 6-channel system
• Modulation: FM(PPM) and PCM
• Power supply: 9.6V NT8S600B Ni-Cd battery pack or 12V alkaline battery pack pack
• Current drain: 250mA

Receiver

• R136F slim musical organization, FM 6 channel receiver.
• Getting on 40 / 72 MHz musical organization.
• Type: FM, Dual conversion/FM, Solitary transformation
• Intermediate frequencies: 455kHz, 10.7MHz/455kHz
• Power requirement: 4.8V or 6V
• Present drain: 9.5mA @ 4.8V
• Size: 1.31 x 1.98 x 0.71" (33.4 x 50.3 x 18.1mm)
• Weight 0.98oz (27.8g)

Servo

• S3003 standard servo with mounting gear and servo supply assortment
• Control system: Pulse width control,1.52ms neutral
• Power requirement: 4.8 or 6V (from receiver)
• Production torque: 44.4oz-in [3.2kg-cm] @4.8V
• Running rate: 0.23sec/[email protected]
• Size: 1.59x0.78x1.41" [40.4x19.8x36mm]
• Body fat: 1.3oz (38.0g)
