Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)  [SW-001X]

Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)
Price:
AUD$85.89
Brand:
Sanwa
Model:
SW-001X
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - System - Transmitter - Car Transmitters category
Write a review
alt="Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)" title="Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)"
alt="Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)" title="Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)"
alt="Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)" title="Sanwa Dash Saber AM 27mhz 2 Channel Radio Control w/SRD-2122RS Receiver/2x SRM-102 Servos(SB-NOR)"

Articles:

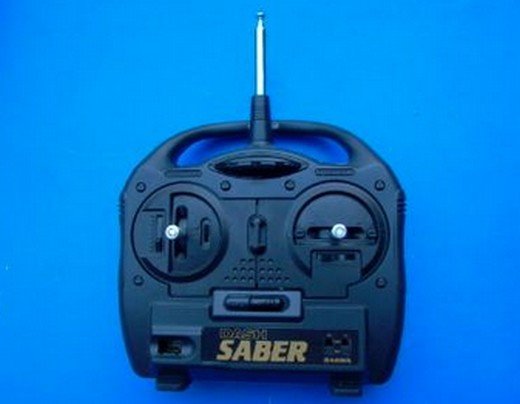

  • Sanwa Dash Saber-X Transmitter
  • SRD-2122RS Receiver
  • 2x SRM-102 Servos (SB-NOR)

Specs:


Transmitter:

  • Energy:500mW
  • Modululation: PPM/AM
  • Occupied Bandwidth: -55db@ 20KHz
  • Power: 8AA Size Dry Cells DC 12V
  • Weight 393 grams (Excepting battery)

Receiver:

  • Modululation: PPM/AM
  • Intermediate Frequency: 455KHz
  • Power Supply: 4.8V to 8.4V NiCD,6.0V Dry Cell
  • Measurements:48mm(L)x33mm(W)x19mm(H)
  • Weight:32 grams

Servo:

  • Power: 6.0V through BEC Receiver
  • Measurements:39mm(L)x20mm(W)x36mm(H)
  • Body fat:45 grams
  • Transit time: 0.18 seconds (at 6.0V) for 60 level rotation
  • Torque:3.5 kg/cm (6.0V)

Accessories

  • BEC Swith Harness
  • Instrustion Handbook
