HOBBYWING EzRun 4274/4268 - 30402500  [HW-30402500]

Tall Torque

The 4 pole design will guarantee the motor to produce large quantities of torque,
a faster acceleration reaction and an extremely stable manufacturing of power to the drivetrain.

High effectiveness

Hobbywing’s temperature control technology had been made to protect the engine
from being damaged by heat consequently less temperature better the motor will run and
perform. The output performance with this particular motor has an efficiency price entirely to 90%
and for that reason in case power using the motor reaches 1000 watts your guaranteed
that 900 watt with this energy is going to be available no less.

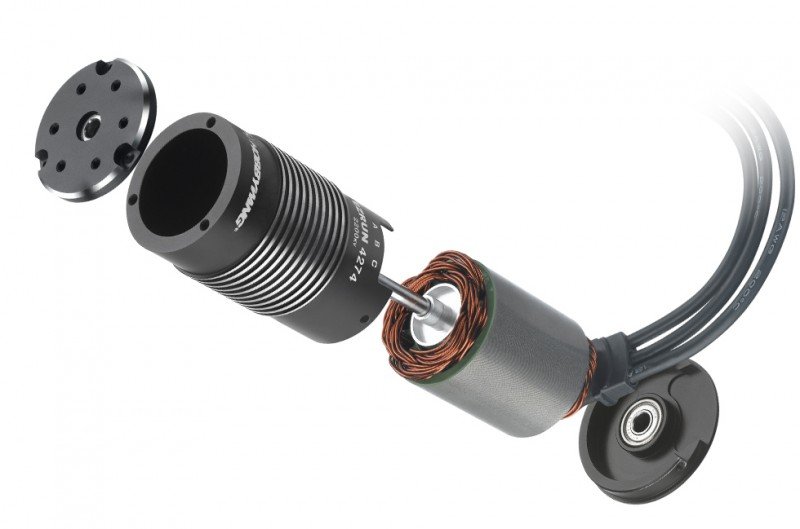

Great Construction

The motor housing is made of hard anodized aluminum, motor windings are
wound from pure oxygen-free double insulated copper wire, the higher level rotor
framework is made to handle high temperature through usage of unusual earth
magnets, production shaft from high quality refined alloy metal plus the imported
bearings which are implemented are high accuracy metal caged for the absolute minimum
to zero friction that will guarantee strength, outstanding performance,
high durability and smoothness about the motor.

Compatible (with the EZRUN MAX8 ESC)

When combining the EZRun 4274 engine along with the Hobbwing EZRun MAX8 (150amp) ESC,
the excellent match between ESC and motor will provide you with big torque plus an extremely
smooth and linear power musical company.

Item Specification

Type

• Scale : 1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 4

Relevant Parameters

• KV Rating : 2200
• LiPo Cells : 2-6S
• No-load Current(A) : 5
• Max. Energy Output(W) : 3000
• Current on Point of Max. Energy Output(A) : 120A

Size & Weight

• O.D.(mm) : 42.0(1.654in)
• Length (mm) : 74.0(2.913in)
• Shaft Diameter (mm) : 5.0(0.196in)
• fat (g) : 418(14.745oz)

Other Parameters

• Timing : 0
• Applications : 1/8^th Monster Trucks/Trucks
