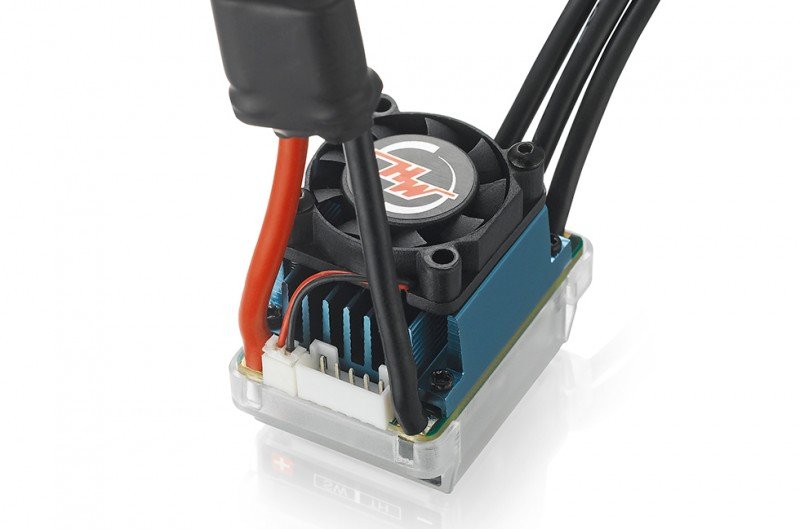

HOBBYWING EzRun 60A - 81010190  [HW-81010190]

Tall Reliability & Durability

Reliable hardware in conjunction with high rate computer software technology allows
the EZRUN 60A not to ever simply offer high energy production and
overload safety regarding the ESC circuit.

Great Flexibility & Versatility

With the strong torque and excellent production,
the EZRUN 60A can actually take care of all of the power hungry demands that expert
motorists need. The very adjustable parameters regarding the ESC permits motorists to
enjoy smooth throttle response if the throttle/brake linearity is utmost needed.

Effective Cooling System

Hobbywing patented heat-conductive copper club address within the power
board of EZRUN 60A, that may effectively and effectively go temperature
to the integrated CNC machined billet aluminum heat sink housing,
alongside high-performance cooling fan will keep your ESC
as cool that you can.

Ways of
ESC Programming

Multiple ways of ESC development supported:
fundamental settings via SET key on ESC,
higher rate settings via Light-emitting Diode system box/multifunction LCD
system industry & Hobbywing USB LINK software.

Regular Firmware Updates
----Free of Charges

You can upgrade the EZRUN 60A because of the Hobbywing USB
LINK pc software, a multifunction LCD system
industry and a laptop computer. Hobbywing updates its ESC
firmware usually providing you upgraded
features more frequently whenever available.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : No

Specifications

• Cont./Peak Present : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : Linear Mode:6V/1.5A

Wires & Connectors

• Input Wires : Red-14AWG-150mm*1/Black-14AWG-150mm*1
• Output cables : Black-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25.0x25.0x7.0mm
• Voltage Number : 5-8.4V
• Powered by : running on Battery

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 31.5x27.5x24.0mm
• Weight : 32g
