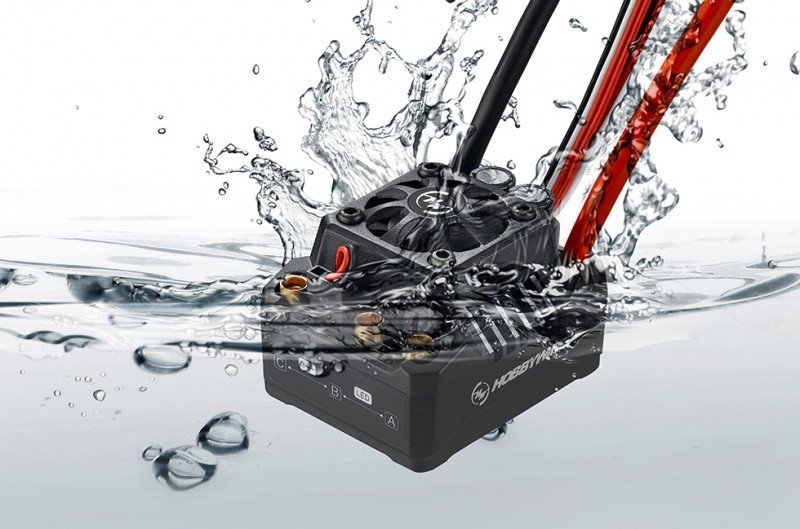

HOBBYWING EzRun MAX10 SCT - 30102601  [HW-30102601]

Tall Reliability & Durability

Built with tough and top-quality components and along with
cutting-edge firmware, the EzRun MAX10 SCT has the capacity to deliver unmatched power and gratification even for
numerous hardcore of rushing applicatinos, it is also responsive sufficient to guard it self from
harm considering overloading due to genuine punishment, overuse and also specific blunder.

Advanced and Secure Electronic Switch

The MAX10 SCT features an electric switch with a lifespan of over 50000 on/off cycles,
housed in an entirely waterproof, dust-prood and shock-resistant design.

Applicable to everyone Weather Conditions

The waterproof and dust-proof design allows the MAX10 SCT become employed in every weather
without any problem of harm caused towards the ESC from water or dirt.

Revolutionary Filter Capacitor Thermal Protection

The filter capacitor thermal security first used to the MAX10 SCT will effectively protect
capacitors from exploding and causing irreversible harm to the ESC due to overload.

Regular Firmware Updates
without Charge

You can update the MAX10 SCT due to the HobbyWing
USB LINK software, a multifunction LCD system package
and a laptop. HobbyWing updates its ESC firmware
regularly providing you upgraded features more regularly
whenever available.

Product Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : Yes

Specifications

• Cont./Peak Present : 120A/830A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : Switch Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Range : 5-7.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 49.0x39.5x34.7mm
• Weight : 105g
