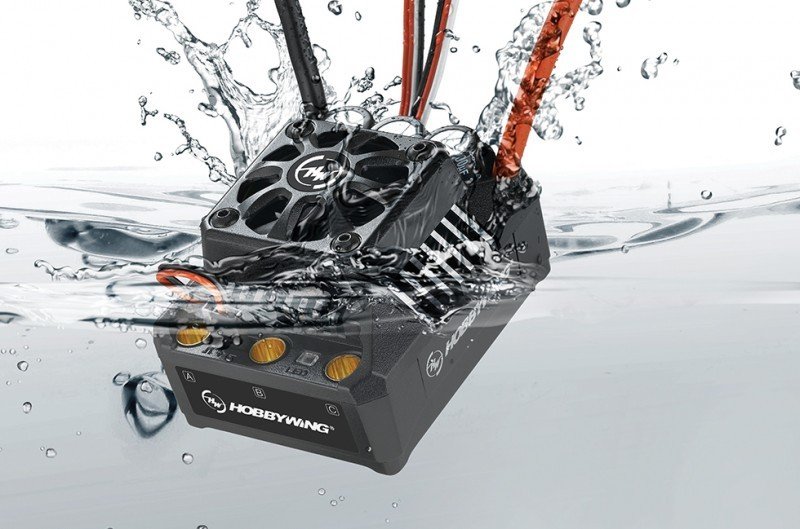

HOBBYWING EzRun MAX6 - 30105000  [HW-30105000]

Tall Reliability & Durability

Built most abundant in rugged and top-quality elements and alongside
cutting-edge firmware, the EZRUN MAX6 can deliver unmatched energy
and gratification even the many hardcore of rushing applications, it is in addition
responsive sufficient to shield itself from harm considering overloading as a result of real
abuse, overuse and/or peoples error.

Great Flexibility & Versatility

With amazing acceleration abilities and a rock-solid, stable
production, the MAX6 are designed for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through bumpiest surface. Someone could have the decision of
adjusting the ESC parameters according to their option and capability.

Relevant to All Weather Conditions

The waterproof and dust-proof design allows the MAX6 to be utilized in many climate
conditions without problem of damage caused on ESC from water or dust.

High Voltage integrated BEC

The MAX6 has adopted the world’s very first HV integral BEC with a production present all the way to 25Amp and a switchable production voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on demand used by major vehicles.

Advanced and Secure
Electronic Switch

The MAX6 features an electronic digital switch with a lifespan of over
50000 on/off cycles, housed in a totally waterproof,
dust-proof and shock-resistant design.

Regular Firmware Updates
without the Charge

You can update the MAX6 utilising the Hobbywing USB
LINK software, a multifunction LCD program field and a laptop.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more often whenever available.

Incorporated Anti-Spark System

The MAX6 is built with interior anti-spark circuitry that protects not merely battery power connectors
from damage but helps prevent genuine damage because of burnt hands from unavoidable
issue of sparking whenever starting up the ESC to raised voltage battery packages (5S/6S/7S/8S).

Quantity of Applications

MAX6 Applications:
This ESC is pertinent to different 1/6^th & 1/7^th scale automobiles like the Traxxas XO-1, in addition to
suitable to different 1/8^th scale hefty cars like the CEN GST-E. It's your best option for
high-end aggressively driven builds.

Product Specification

Type

• Scale : 1/6^th、1/7^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 160A/1050A
• Input : 3-8S LiPo/9-24 Cells NiMH
• BEC manufacturing : change Mode:6V/7.4V,6A

Wires & Connectors

• Input Wires : Red-10AWG-200mm*1/Black-10AWG-200mm*1
• Output Wires : Black-10AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 6.5mm Famale silver Connectors (pre-soldered regarding the PCB)

Fan

• Size : 35.0x35.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : Powered by BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x56.0x46.5mm
• Weight : 240g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/6^th、1/7^th Touring Car/Buggy/Truck
• KV Rating/T Count : 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)
