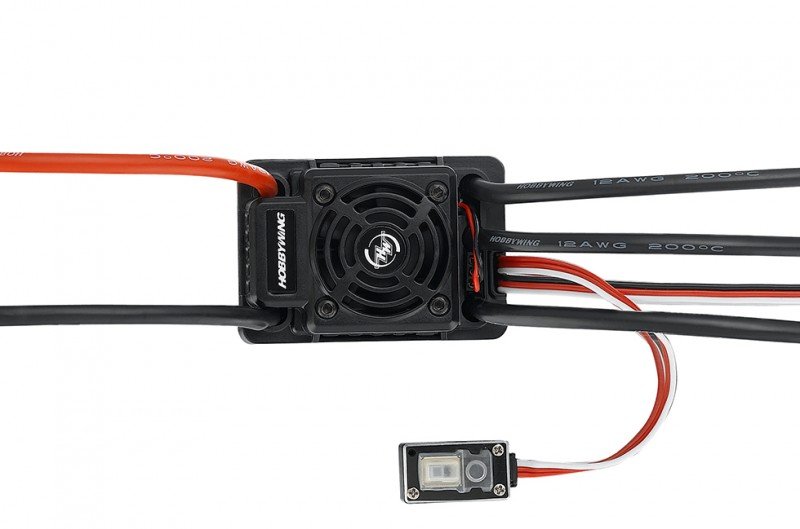

HOBBYWING EzRun WP SC8 - 81010400  [HW-81010400]

High Reliability & Durability

Reliable hardware along side higher level software technology enables
the EZRUN WP-SC8 not to only offer high energy output but additionally
overload protection of ESC circuit.

Relevant to any or all Weather Conditions

The waterproof and dust-proof design permits the MAX10 to be utilized in almost every climate conditions
without dilemma of harm triggered on ESC from water or dust.

Great Flexibility & Versatility

With the strong torque and exceptional production, the EZRUN WP-SC8 can
definitely appeal to the power hungry demands that professional motorists need.
The severely adjustable parameters of ESC allows motorists to enjoy
smooth throttle effect when the throttle/brake
linearity is utmost needed.

Built-in BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V get this ESC appropriate for various servos.

Effective Cooling System

Hobbywing patented heat-conductive copper club cover regarding power board of
the EZRUN WP SC8,which can effortlessly and effectively go temperature
towards incorporated CNC machined billet aluminum heat sink housing,
along side reticulate heatsink and superior cooling fan can keep your ESC
as cool as possible.

Methods of ESC Programming

Multiple options for ESC development supported:
basic settings via SET key about the ESC,
higher level settings via Light-emitting Diode system box/multifunction LCD program field
& Hobbywing USB LINK pc software.

Regular Firmware Updates
----Free of Charge

You can update the EZRUN WP SC8
aided by the Hobbywing USB LINK pc software,
a multifunction LCD program field and a mobile computer.
Hobbywing updates its ESC firmware frequently providing you with
upgraded features more frequently whenever available.

Item Specification

Type

• Scale : 1/10^th、1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Current : 120A/760A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC production : modification Mode:6V/3A

Wires & Connectors

• Input cables : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output Wires : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 59.0x38.0x34.0mm
• Weight : 113g
