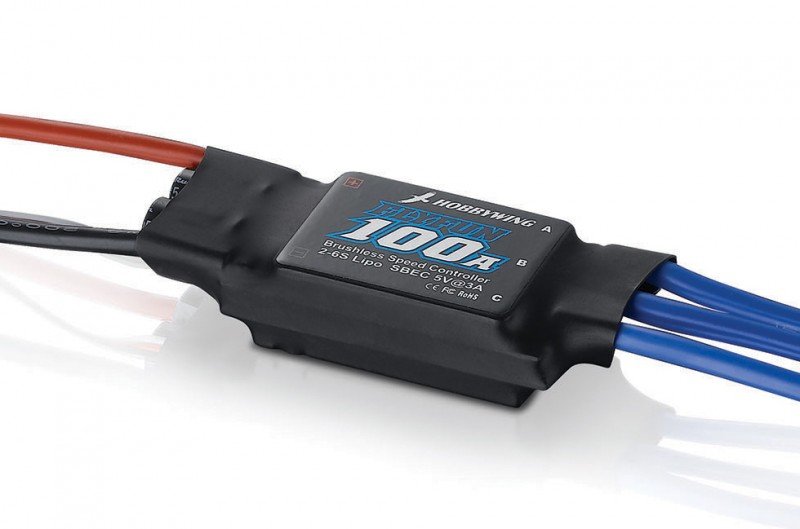

HOBBYWING FlyFun 100A V4 - 80020650  [HW-80020650]

Great Performance

Imported elements and the PCB (printed circuit
board) with acutely low impedance used by FlyFun ESCs gurantee
great present stamina, good performance and high dependability.

Programmale Parameters

With a rich set of programmable parameters (via a LED system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effectively prolongs the solution life linked to the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 100A/120A
• Input : 2-6S LiPo
• BEC production : Linear mode:5V,3A
• Output Wires : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Gold Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 83.0x31.0x16.0mm
• Weight : 76g
