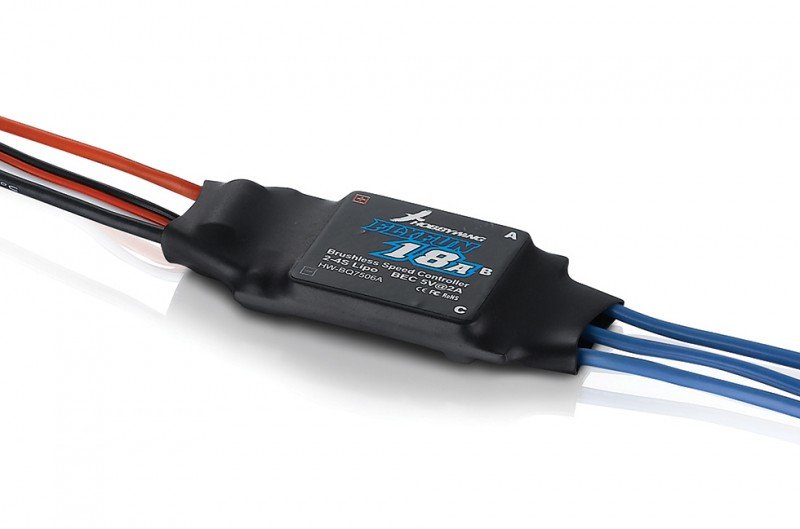

HOBBYWING FlyFun 18A V4.3 - 30202150  [HW-30202150]

Great Performance

Imported elements therefore the PCB (printed circuit
board) with incredibly low impedance used by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich group of programmable parameters (via a Light-emitting Diode program
card/box), FlyFun ESC does apply to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail Safe), and low voltage
cutoff effectively prolongs the perfect solution is life the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 18A/22A
• Input : 2-4S LiPo
• BEC Output : Linear mode:5V,2A
• Output Wires : Blue-18AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 48.0x22.5x6.0mm
• Weight : 19g
