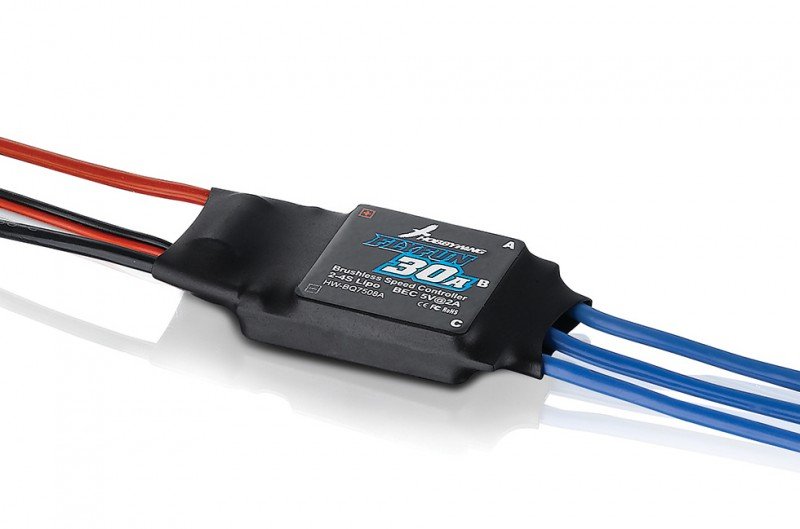

HOBBYWING FlyFun 30A V4 - 80020610  [HW-80020610]

Great Performance

Imported elements and the PCB (printed circuit
board) with excessively low impedance adopted by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a LED system
card/box), FlyFun ESC does apply to different aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple safety features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the solution life concerning the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 30A/40A
• Input : 2-4S LiPo
• BEC production : Linear mode:5V,2A
• Output Wires : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 55.0x25.0x9.0mm
• Weight : 26g
