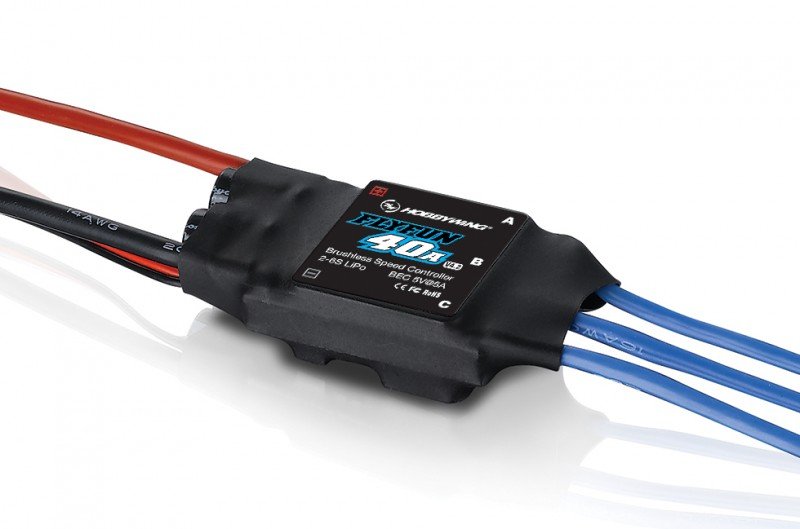

HOBBYWING FlyFun 40A OPTO V4 - 80020622  [HW-80020622]

Great Performance

Imported elements whilst the PCB (printed circuit
board) with extremely low impedance employed by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich set of programmable parameters (via a Light-emitting Diode program
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features contain abnomal input
voltage, ESC thermal, throttle signal loss (or Fail secure), and low voltage
cutoff effectively prolongs the solution life the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC Output : No
• Output Wires : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 60.0x28.0x12.0mm
• Weight : 35g
