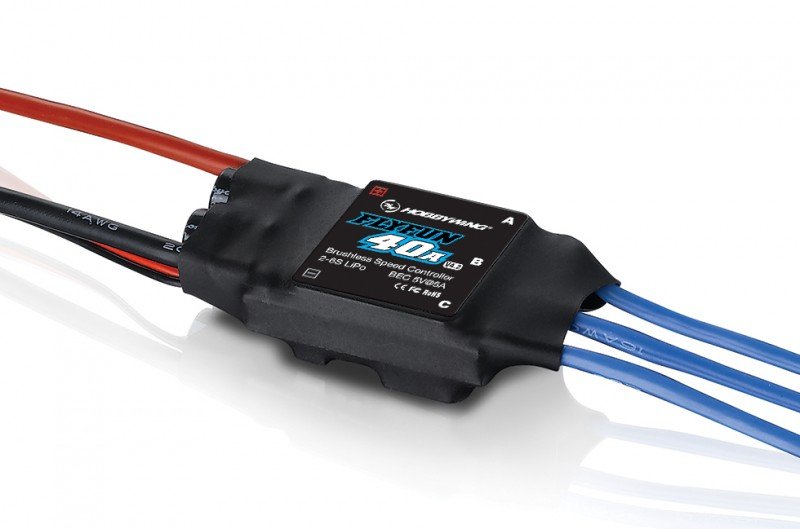

HOBBYWING FlyFun 40A V4.2 - 30214000  [HW-30214000]

Great Performance

Imported elements which means PCB (printed circuit
board) with exceedingly low impedance adopted by FlyFun ESCs gurantee
great present endurance, good performance and high dependability.

Programmale Parameters

With a rich band of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff efficiently prolongs the solution life connected with ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC production : Linear mode:5V,3A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 60.0x28.0x15.0mm
• Weight : 39g
