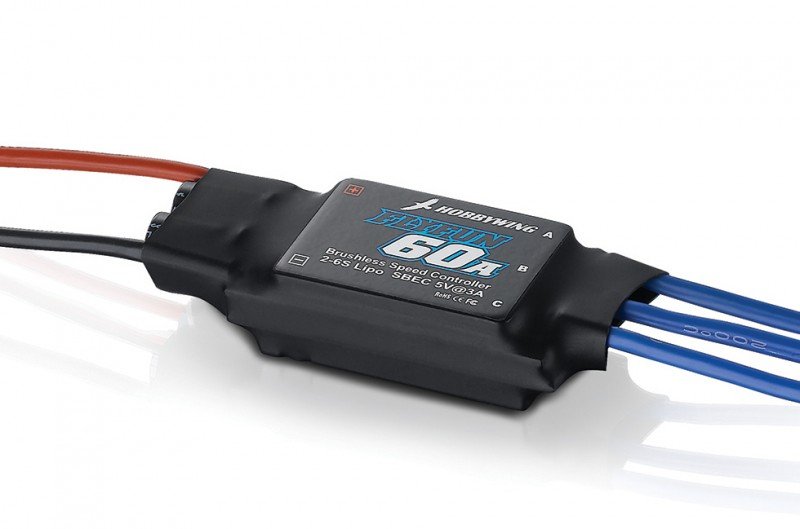

HOBBYWING FlyFun 60A OPTO V4 - 80020632  [HW-80020632]

Great Performance

Imported elements and also the PCB (printed circuit
board) with excessively low impedance used by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich set of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff efficiently prolongs the solution life concerning the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 60A/80A
• Input : 2-6S LiPo
• BEC manufacturing : No
• Output cables : Blue-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 83.0x31.0x14.0mm
• Weight : 60g
