Futaba GY611_S9256 - GY611 Gyro + S9256 Servo  [GY611_S9256]

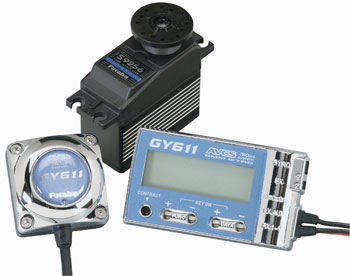

This is actually the Futaba GY611 Gyro with all the S9256 Digital Servo.

FEATURES:
Super slim pulse drive system dramatically improves servo response

Microcomputer high-speed arithmetic processing significantly improves gyro effect

High-resolution 12-bit A/D (Analog to Digital) accurately converts sensor output to an electronic digital Signal

SMM (Silicon Micro Machining) micro-machining technical parts and systems close to a silicon chip and low-back aeroform situation improves vibration opposition and neutral attribute

AVCS (Angular Vector Control System) (similar to Heading Hold) system demands a high-precision angular velocity detection function and intensely little production drift by just making use of a new sort of gyro sensor.

This minimizes rudder neutral place drift during flight and eliminates the should cut the rudder during journey.

Futaba S9256 (FUTM0226) Digital Servo is totally suitable for super narrow pulse drive and features high reaction (.06 sec/60�X) and Alumite case with heat sink to cool the engine

INCLUDES:
Futaba GY611 sensor, control amp, S9256 servo, mini screwdriver, 3 sections increase sided tape and instruction sheet

NEEDS:
4.8V Rx battery power ONLY (greater voltage could harm the servo)
Assembly and modification onto the helicopter

SPECS:
GY611 Ratings: Yaw-axis stabilizer for helicopter (rate gyro)
Display Device: 8-character dot matrix fluid Crystal Show
operating Voltage Range: DC 3.8V to 5V
present Drain: 70mA @ 5V, including sensor
Measurements: Amp 2.2"x 1.2"x .59" (57 x 32 x 15mm)
Sensor 1.2"x 1.2"x .71" (30 x 30 x 18mm)
Body weight: Amp 1.19oz (34g) / Sensor 1.05oz (30g)

S9256 Servo
Proportions: 1.6"x .79"x 1.4" (40 x 20 x 36.6mm)
Body weight: 2.01oz (57g)
Speed: .06 sec/60�X (at 4.8V)
Torque: 47 oz-in (3.4 kg-cm) (at 4.8V)
