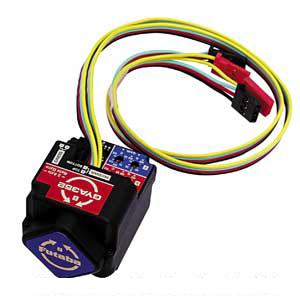

Futaba GYA352 AVCS Gyro w/ SMM Technology for Airplane  [GYA352]

Futaba GYA352 is a two-Axis AVCS airplane gyro, suitable for 2 control areas like elevator and rudder control. This gyro, whenever applied to the elevator and rudder control, can alleviate the workload of traveling 3D and lots of hovering maneuvers. AVCS or Angular Velocity Control System is equivalent to 'heading hold', except it utilises a gyro sensor that's more accurate significantly less at risk of vibration than main-stream gyros. It continually provides control signals toward servo, even in the event the axis seriously isn't moving, for extremely low temperature drift and much more good control for hovering and traveling in crosswinds. With this particular gyro, you can switch AVCS on or off whenever assigned to an auxillary switch.

Function and Feature

• This gyro can detect rotations throughout the X-axis and Y-axis independantly, and can get a grip on aileron and elevator, or elevator and rudder aswell.
• Employing the AVCS system, this gyro constantly keeps the airplane??s mindset regardless if traveling upright, inverted, upward, downward or knife-edge against unforeseen alterations in weather like wind.
• The gyro makes traveling easier by doing all the modification control for you. The gyro immediately eliminates the bad tendencies of one's airplane in addition.
• The gyro has an integrated blending circuit for elevons and ruddervators.
• Because regarding the excessively low drift associated with newly developed, high-precision gyro-sensor, according to SMM (Silicon Micro device) technology, trim deviation seldom happens during flight.
• The sensitiveness of gyro can be from another location adjusted from transmitter. Also, the AVCS/Normal modes and gyro On/Off could possibly be from another location changed from transmitter.
• Using high-density surface mounting technology we discovered the tiny size and light-weight.
• The conductive resin instance improves the opposition to EMI (Electromagnetic disruption).

Includes:

• One GYA352
• One synthetic modification screwdriver
• Three mounting pads
• One instruction sheet

SPECS:

• Measurements: 43x30x35.5mm
• Weight: 49.5g
