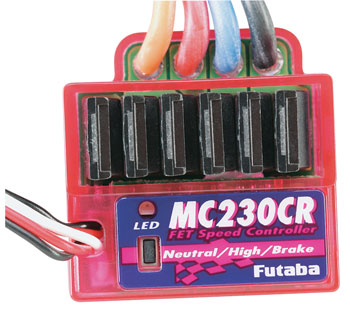

Futaba MC230CR ESC w/Reverse 20+T  [MC230CR]

This is a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.

CHARACTERISTICS:

• Operates machines which are often 20 turns up to 27 turns (Stock Motors)
• All connectors are pre-installed
• One-touch set-up with set-up Light-emitting Diode.
• Completely proportional forward and reverse
• Includes Reverse Disable it is therefore appropriate for ROAR racing
• Heat/overload/short circuit protection
• Low-battery function straight away cuts motor power whenever energy levels become too low.
• Receiver reminder switch beeps to remind that you switch off the receiver additionally the car will pulse (not run) forward as an extra reminder.
• Brake

INCLUDES:

• One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard sort battery connector and ON/OFF switch.
• One Set-Up Screwdriver (FUTM5685)
• One Instruction Sheet

NEEDS:

• Futaba J plug appropriate receiver
• Feminine bullet engine connectors for motor, usage TRIC5500.

SPECS:

• Ability: 6 to 7 mobile batteries
• Motor Limit: 20+ turns
• Current- Forward: 90A Reverse: 45A
• On resistance: .0035 Ohms
• High Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for Battery, Bullet engine (all pre-installed)
• Bullet Engine Wire: 16 measure
• BEC: Yes (6V) (1 amp)
• Length: 1.07" (27.1mm)
• Width: .50" (12.7mm)
• Height: 1.31" (33.3mm)
• fat: 1.55oz (44g)

REMARKS:

Most of the time, high-torque and brushless servos for steering control works extremely well using this ESC so long as the constant present draw for the servo cannot surpass 1A constantly. Avoid using the Futaba S9157 high-torque servo with this ESC as this servo appeals to over 3A."
