Futaba R114F 4-Channel FM Rx 40MHz High with Short Crystal  [R114F]

Futaba (#R114F) - Futaba 4-Channel FM Rx 40MHz high with brief Crystal

RECORDS FROM OUR TECH DEPARTMENT

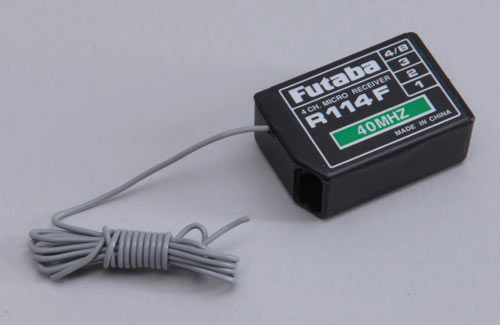

This is a R114F 4-Channel HI 40MHz FM Receiver "With Crystal" from Futaba.

FEATURES:

Narrow-band spacing and superior sign filtering combined to
provide exceptionally clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who wants to take advantage of a person radio transmitter
to run a number of different models.
Perfect for Park or slowly Flyers.
Range of around 650 feet (200m)

SPECS: Narrow Band: 20kHz
Power Requirements: 4.8 to 6.0 volts (shared with servos)
Current Drain: 10mA
Length: 1-1/4" (31.75mm)
Width: 1/2" (.02mm)
Height: 7/8" (.28mm)
fat: 0.35 oz (9.9g)

COMMENTARY: Special Notice about Frequency Changes-
*72MHz- minimal musical organization stations 11 to 35; High musical company networks 36 to 60.
Receiver crystal stations (11-35 or 36-60) Within Each Band
Can remain Changed, and do not need a retuning the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical organization, OR from high to low band without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz regularity Bands cannot under any
circumstances be interchanged together. The receiver Must
be submitted for retuning toward appropriate musical organization.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within the respective bands. You will find no actual high or low bands such
as the 72MHz band has.
*Transmitter Crystals can not be changed to another channel except
by a certified solution center. It's against FCC guidelines, and
illegal the specific to improve a frequency determining component
of a transmitter. If radio is not retuned, it may be a hazard
spectators, modelers or property, and void AMA coverage.
*Check with the local R/C club the frequencies used in your area.
