Futaba R133F 3Ch FM 75MHz with Crystal  [R133F]

Futaba (#R133F) - Futaba R133F 3Ch FM 75MHz with Crystal

NOTES FROM the TECH DEPARTMENT

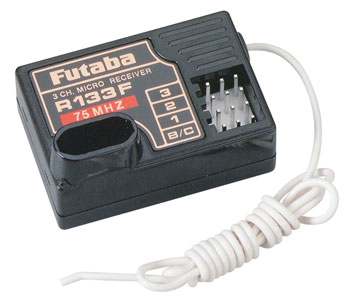

This in fact is a Futaba R133F 3 Channel Micro FM Receiver with Crystal.

SPECS: Length: 1-1/2" (38mm)
Width: 1" (25mm)
Height: 5/8" (16mm)
Weight: 0.72 oz.
Frequency: 75MHz
Frequency Spacing: 20kHz

COMMENTS: For R133F on 27MHz
Unique Notice about Frequency Changes-
*72MHz- Low musical organization stations 11 to 35; high musical company networks 36 to 60.
Receiver crystal stations (11-35 or 36-60) Within Each Band
Can stay Changed, nor require a retuning for the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high band, OR from high to low musical company without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands cannot under any
circumstances be interchanged with one another. The receiver Mus
be submitted for retuning on appropriate musical organization.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within the particular bands. There are not any high or low bands such
as the 72MHz musical organization has.
*Transmitter Crystals can not be changed to another channel except
by an authorized service center. It is against FCC laws, and
illegal an individual to change a frequency determining component
of a transmitter. In the event that radio is not retuned, it may be a hazard
spectators, modelers or home, and void AMA protection.
*Check with all the current neighbor hood R/C club the frequencies employed in your neighborhood.
