Futaba R149DP 9-Channel PCM Rx 50MHz/ 72MHz High w/o Crystal  [R149DP]

Futaba (#R149DP) - Futaba R149DP 9-Channel PCM Rx 72MHz High w/o Crystal

NOTES FROM OUR TECH DEPARTMENT

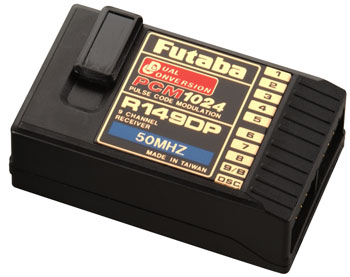

This is a R149DP 9-Ch 72MHz PCM 1024 Dual Conversion Receiver Without Crystal.
This is a higher Band (channel 36-60) receiver without a crystal (see NEEDS).

QUALITIES: Narrow-band spacing and double conversion indication filtering combined to
provide exceedingly clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who would like to use an individual radio transmitter
to travel a number of different model aircraft. Particularly pilots whom are
utilizing computerized radios with multi-model memory.

INCLUDES: One R149DP Miniature 9 Channel 72MHz PCM 1024 Receiver

NEEDS: One FUTL58** Dual Conversion Receiver Crystal

SPECS: Narrow Band: 20KHz
Intermediate Frequency- 1st IF: 10.7MHz
2nd IF: 455kHz
Power needs: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 15mA
Length: 2.16" (55.0mm)
Width: 1.27" (32.0mm)
Height: 0.82" (21.0mm)
fat: 1.2 oz (36g)
COMMENTS: 1024 Resolution is not appropriate for Older PCM 512 methods.
For the transmitter/receiver crystal set, use FUTL20**.
For the Tall Band, use FUTL0903.
Special Notice about Frequency Changes-
*72MHz- Low band stations 11 to 35; High band stations 36 to 60.
Receiver crystal channels (11-35 or 36-60) Within Each Band
Can become Changed, and do not Require a retuning the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical company, OR from high to low musical company without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands can not under any
circumstances be interchanged together. 72/75:receiver Must
be presented for retuning to your appropriate band. 50/27: can't do.
*50MHz, 27MHz and 75MHz receiver crystals could be changed anywhere
within the particular bands. There are no actual high or low bands such
as the 72MHz musical organization has.
*Transmitter Crystals cannot be changed to another channel except
by a licensed solution center. It really is against FCC guidelines, and
illegal an individual to alter a frequency determining component
of a transmitter. If the radio isn't retuned, it may be a hazard
spectators, modelers or property, and void AMA protection.
*Check due to the neighborhood R/C club the frequencies found in your neighborhood
