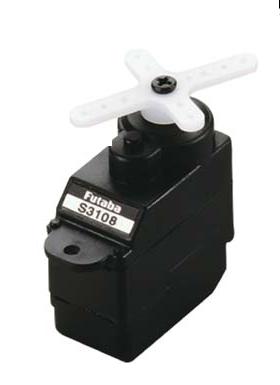

Futaba S3108 Micro Servo  [S3108]

Here is the S3108 Micro Servo from Futaba servo, that's useful for R/C park flyer airplanes.

This servo can create high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, get them to capable of delivering enough Amps.

FEATURES:
Delivers exemplary torque and price due to its little size and lightweight
Unique four point micro servo horn
Extremely lightweight, perfect for little planes and park leaflets
may be used for elevators, ailerons and rudders
12 months limited warranty

INCLUDES:
One S3108 Micro Servo with Futaba J male connector, servo horn, and guarantee sheet

REQUIRES: Servo mounting screws (FUTM2350), setting up in model

SPECS:
Speed: 0.12 sec/60 deg @ 4.8V
Torque: 17 oz/in @ 4.8V
Measurements: Length: .9" (21.8mm)
Height: 0.8" (19.8mm)
Weight: 0.27 ounce (7.6 grams)
Servo horn size at longest point: 0.90" (23mm)
Servo horn size at quickest point: 0.62" (16mm)
Connector: Male "J" type with approx. 5" (126mm) cable

OPINIONS:
This servo may not be combined with fuel machines or large/middle scale gliders or other models that want torque. Use of 6.0V not advised as this will shorten servo life.

This servo has the standard Futaba J connector.If needing the micro connector and person would buy FUTM0700.
Micro Extension is FUTM4508.
For replacement horn set utilize component # HRCM5708 (per jpg)
No gear set available, per FUTABA.
