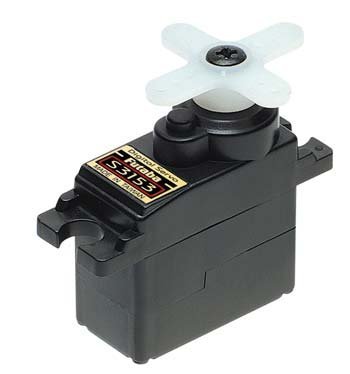

Futaba S3153 Digital Micro High-Speed Servo  [S3153]

Here is the S3153 Digital High Speed Micro Mini Servo
designed for use with Futaba broadcast Control Systems.
It is the Digital high Speed form of the S3103 Servo.

This servo can create high-current draw from your batteries if using NiMH or LiPo batteries, cause them to become effective at delivering sufficient amps.

FEATURES:
Small compact design for small electric motor airplanes metal gears
One year guarantee

INCLUDES:
One S3153 Digital Tall Speed Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings)

NEEDS:
Installing in model, attaching linkage and plugging into receiver

SPECS:
Speed: 0.11 sec/60�X @ 4.8V
0.09 sec/60�X @ 6V
Torque: 19 oz-in (1.4kg/cm) @ 4.8V
24 oz-in (1.7kg/cm) @ 6V
Proportions: .9" x 0.4" x 0.8" (22 x 11 x 20mm)
weight: .34oz (9.6g)
Production Shaft Diameter: 5mm


COMMENTS:
The S3153 servo cannot be used in combination with gasoline engine airplanes adequate cause for big gliders along with other models that want some torque.
Making use of with a huge load at a better voltage will reduce servo life (4.8V suggested).
For an upgraded servo horn purchase FUTM2038.
For the long horns use component number FUTM2005.
