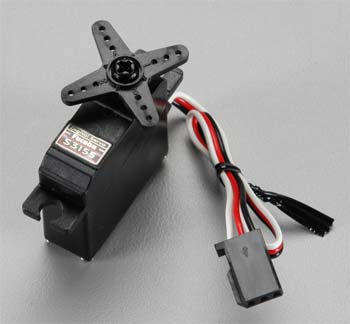

Futaba S3155 Digital HS Slim Servo  [S3155]

This is actually the Futaba S3155 Digital Tall Speed Wing Servo. Ideal for wing-mounted applications requiring higher level including gliders.

This servo can create high-current draw from your own batteries if making use of NiMH or LiPo batteries, cause them to effective at delivering adequate amps.

FEATURES:
Dust and water resistant-not waterproof
Compact design is very suited for easy installation within the wing of smaller gliders, jets and electric planes
Ebony plastic situation
Metal gears (FUTM3331)
12 months warranty


INCLUDES:
One S3155 Digital Tall Speed Wing Servo
One 1" (25.4mm) 4 supply servo horn (set up on servo)
One 1.5" (39mm) 4 supply servo horn
One 1.75" (45mm) right servo horn
One 1.4" (35mm) diameter circular servo horn
Two eyelets
Two rubber grommets
Two 2x12mm washer brain self-threading screws (phillips head)


SPECS:
Speed: 0.16 sec/60�X @ 4.8V, .13 sec/60�X @ 6V
Torque: 28 oz-in @ 4.8V (2.0kg/cm)
Measurements: 1.2 x 0.4 x 1.1" (30 x 11 x 29mm)
weight: 0.72oz (20g)
Lead Length: 6" (154mm)


OPINIONS:
S3155 Digital Servo Precautions,
-It is way better to stop long leads and Y-harnesses especially with standard grade cables. If issues are experienced, consider utilizing heavy fat cable such as for example Futaba's heavy weight Series or Hobbico's Pro Series,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: This Digital Servo is created specifically for high-torque or high-speed, consequently high present drain is normal at startup. For ultimate performance when working with this servo please review these points.
1. broadcast systems using the Battery Fail Safe function have actually a heightened cut-off voltage environment that'll cause shorter operation time.
2. whenever setting up the servo, be sure to always check pushrod linkage to be sure there isn't any binding to avoid excessive energy usage and minimize the engine and battery pack life.

This digital servo may not be used in combination with the after * have always been * transmitters because the servo basic sign is: 1310us). CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Groundbreaking Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
