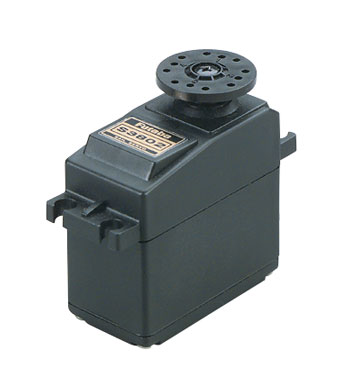

Futaba S3802 Sail Servo  [S3802]

Which a premier Torque, Arm-Type Sail Servo with a Metal production Gear for Sailboat Applications.

This S3802 is the replacement the S125 servo. It may produce high-current draw from your batteries if utilizing NiMH or LiPo batteries, cause them to become capable of delivering sufficient amps.

FEATURES:
Metal gears with a certain interference-eliminating lubricant to deal with high torque applications.
3-pole motor
Two ball bearings
Synthetic sail supply included (FSH25H), plus 22mm Round Horn
Rubber gaskets help it become water and dust resistant.
12 months guarantee
Has an arc of 60�X, it truly is capable of 140�X with a computer radio which has adjustable ATV. updated 4-28-05, dew

INCLUDES:
One S3802 Tall Torque Sail Servo w/ J Connector
Four Mounting Screws
Four Rectangular Grommets
Four Brass eyelets

SPECS:
Length: 1.7" (44mm)
Width: 0.9" (23mm)
Height: 1.7" (43mm)
body weight: 2.5oz (72g)
Sail Arm Length: 125mm
Torque: 122 oz-in @ 4.8V - 153 oz-in @ 6V
8.8 kg-cm @ 4.8V - 11.0 kg-cm @ 6V
Transit Time: 0.70 sec/60�X @ 4.8V - 0.56 sec/60�X @ 6V
