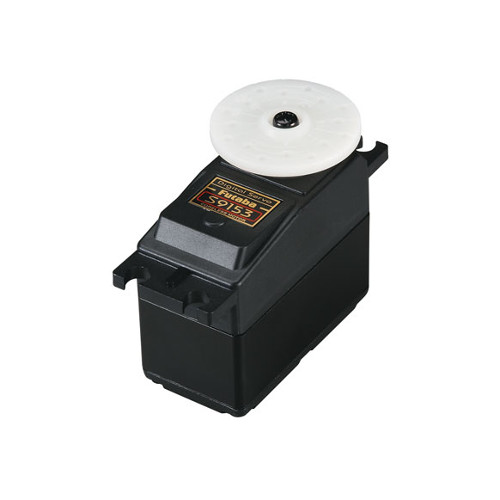

this is actually the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with "J" Connector Pre-Installed.
FEATURES: quality wiring handles greater present loads
Metal center casing which helps to dissipate heat and it's also designed to
be water and dust proof
Coreless motor
High torque
One 12 months warranty
INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four metal bushings
Four 3mm x 15mm self tapping phillips mind mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: 0.15 sec/60 levels @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
fat: 3 oz (85g)
Length: 1.91" (48.6mm) instance only
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting gap centers exact same side: 0.55" (14mm)
Distance between mounting space facilities opposing part: 2.35" (59.6mm)
REVIEWS: S9153 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses especially with
standard grade cables. If issues are encountered, consider using
heavy duty cable such as for example Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9153 Servo is created specifically for High-
Torque and High-Speed, for this reason quite high Current Drain Is
Normal At business. For Ultimate Efficiency Whenever Using This Servo
Please Review The Following Points.
(1) When utilizing Systems Due To The Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting That Will Cause Shorter
Operation Time.
(2) When establishing the Servo Please always check Pushrod Linkage To Make
Sure there's absolutely no Binding to avoid Excessive Power
Consumption and reduce steadily the Life for the engine and Battery.
This electronic servo might not be with the next * have been *
transmitters since the servo basic sign is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), completely new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they will work fine with present AM systems *****
COMMENTS: Servo Accessory Package (FUTM2042) includes the 2 big horns and
all mounting equipment mentioned above.
Gear Set can be obtained separately, FUTM3453.
Case Set can be acquired separately, FUTM3071.
A note on coreless machines. The typical servo motor has a steel
core armature wrapped with with wire that spins in magnets.
In a coreless design, the armature uses a thin cable mesh that forms
a glass that spins throughout the outside the magnet eliminating the
heavy metal core. This design is significantly lighter causing smoother
operation and faster effect time.
