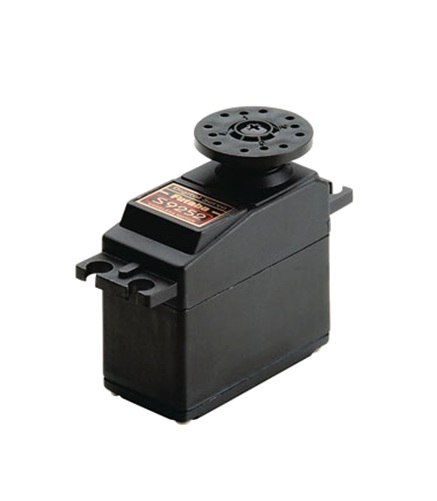

This is the Futaba S9252 Digital high Torque, All-Purpose F3C Servo
with High-Current Wire Lead and "J" Connector Pre-Installed.
This servo can cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, cause them to become capable
of delivering sufficient Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response time
from transmitter input to servo reaction.
Coreless motor
Dual ball bearings on the production shaft
Plastic/nylon gear train
Moderately high speed
High current, high ability cable lead with low resistance
Case is constructed of black colored plastic
Dust and water-resistant (not waterproof)
is effective along with control areas on F3C helicopters or precision
fixed wing aircraft.
One 12 months warranty
INCLUDES: One Digital All Purpose Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six supply Horn
SPECS: Speed: .14 sec/60 levels (considering 4.8V rating)
Torque: 92 oz/in (6.6 kg-cm) (considering 4.8V score)
fat: 1.8 oz (50 g)
power: 4.8V (Futaba does not suggest using 6V)
Length: 1.6" (41mm)
Width: .8" (20mm)
_ Height: 1.5" (38mm)
COMMENTARY: S9252 Digital Servo Precautions,
-It is much better to prevent long leads and Y-harnesses particularly with
standard grade cables. If dilemmas are experienced, consider using
heavy duty cable such as Futaba's quality Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9252 Servo is specifically created for high-
torque and high-speed, because of this high current drain is
normal at startup. For ultimate performance whenever using this servo,
please review these points.
(1) Always utilize a 4.8V NiCd battery. Dry cells are rated at 1.5V
each making the entire voltage 6.0V that may harm the gyro.
(2) Whenever using systems aided by the battery fail safe function it has
a greater cut-off voltage environment that'll cause shorter
operation time.
(3) Whenever establishing the servo please check pushrod linkage to make
sure there isn't any binding so that you can avoid exorbitant power
consumption and minimize the life span of engine and battery power.
When Combined with GY501 Gyro:
Switch the GY501 servo framework price function (Frm) from "NOR" to
"tall" to show the performance of gyro on fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key to produce "High".
This digital servo can not be combined with following * AM *
transmitters since the servo fundamental sign is: 1310us).
CONQUEST have been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they will work fine with present AM systems *****
A conclusion of coreless machines, a conventional servo motor has a
steel core armature covered with cable that spins inside the
magnets. In a coreless design, the armature makes use of a thin wire
mesh that types a cup that spins throughout the not in magnet
eliminating the hefty steel core. This design is lighter
resulting in smoother operation and quicker response time
