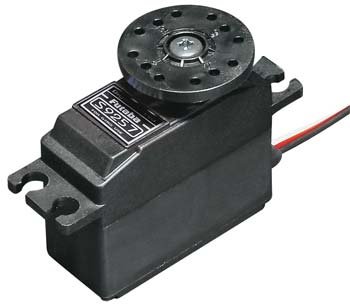

Futaba S9257 EP Heli Digital Rudder Servo  [S9257]

This is the Futaba S9257 High Speed Digital Servo for Helicopter Gyro Operation.

QUALITIES:
To be used utilizing the Futaba GY401 (FUTM0807, FUTM0808) together with GY502 gyros
laden up with two ball bearings
12 months restricted warranty

INCLUDES:
Futaba S9257 tall Speed Digital Servo with .83" (21mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm) diameter six-point horn, mounting equipment, electronic servo precaution sheet and guarantee card

NEEDS:
connecting to gyro

SPECS:
dimensions: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
Weight: 0.92oz (26g)
Torque: 28 oz-in (2.0 kg-cm) at 4.8V
Running Speed: 0.08 sec/60�X at 4.8V
Lead Length: 7.9" (200mm)

RESPONSES:
For use simply with FM, PCM and HRS systems. Do not use with AM systems
