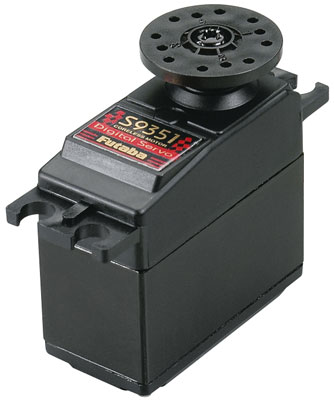

Futaba S9351 Digital High Torque Servo  [S9351]

QUALITIES:
Includes durable wiring which will handle greater active lots
new steel casing which actually really helps to dissipate temperature
Coreless Engine
Tall Torque
Metal gears
ideal for 1/8 vehicles or vessels in which greater Torque and Speed are essential
12 months restricted warranty

INCLUDES:
One Digital tall Torque Servo w/Small Round Horn and 7.5" (190mm) wire lead
Two Rectangular Grommets
Four Chrome Bushings
One "T" Horn

SPECS:
Speed: 0.16 sec/60�X @ 4.8V
0.13 sec/60�X @ 6V
Torque:153 oz-in @ 4.8V
192 oz-in @ 6V
dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
Body weight: 2.2oz (61g)

COMMENTS:
If Gear Set will become necessary FUTM3460
If First Gear just is necessary FUTM3500
For Grommets FUTM2346
For Eyelets FUTM2347
For Mounting Screws FUTM2250

S9351 Digital Servo Precautions,
-It is way better to stop long leads and Y-harnesses especially with standard grade cables. If dilemmas are experienced, contemplate using durable cable such as Futaba's durable Series or Hobbico's Pro Series, minimizing lead lengths, and/or eliminating Y-harnesses.

-Current Drain: Futaba S9350 Servo is particularly created for High-Torque and High-Speed, For That Reason Quite High Active Drain Is Normal At business. For Ultimate Effectiveness When Working With This Servo Please Review The Next Points.

(1) when working with Systems because of the Battery Fail secure Function it's an increased Cut-Off Voltage Setting that may Cause Shorter Procedure Time.

(2) When installing the Servo Please always check Pushrod Linkage to make certain There Is No Binding to be able to Prevent extortionate power Consumption and reduce the Life associated with the Motor and Battery.

This digital servo may possibly not be combined with following * have always been * transmitters although the servo fundamental sign is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
